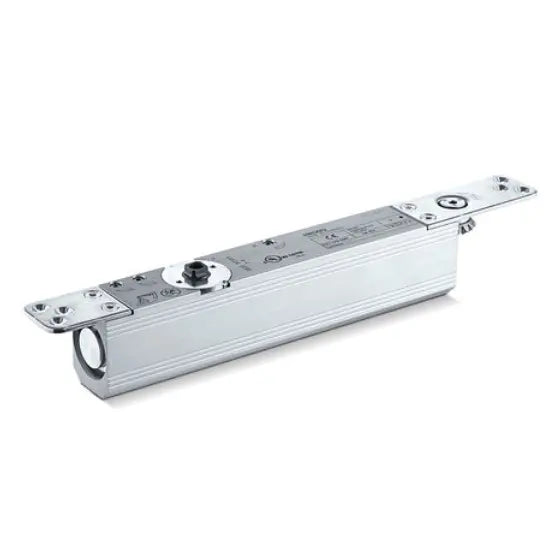

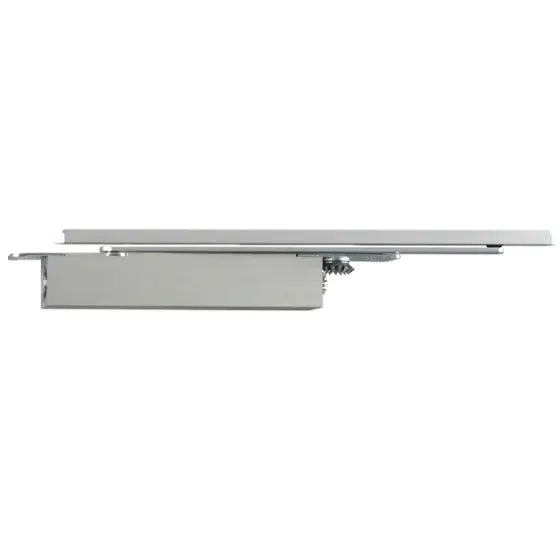

GEZE Boxer 3-6 Heavy Duty Concealed Door Closer with Guide Rail - Commercial Grade, Concealed Design

Versatile Application:

• Suitable for fire and smoke protection doors, requiring proof of suitability for the door.

Single-Action Door Compatibility:

• Designed for right and left single-action doors.

Large Door Coverage:

• Accommodates single-action doors up to 1400 mm leaf width, supporting door weights up to 180 kg.

Adaptable Door Thickness:

• Suitable for door leaf thicknesses from 50 mm.

Integrated Installation:

• Features integrated installation for a seamless and concealed look.

Technical Specifications:

• Closer Body:
  • Boxer 3-6
• Closing Force:
  • Adjustable in accordance with EN 1154 standards (EN 3 - 6).
• Leaf Width (Max.):
  • 1400 mm
• Leaf Weight (Max.):
  • 180 kg
• Opening Angle (Max.):
  • 120 °
• Identical Design for DIN Left and DIN Right:
  • Yes
• Standard Conformity:
  • Complies with EN 1154:1996/A1:2002/AC:2006 standards.
• Fire Protection Suitability:
  • Suitable for fire protection doors.

Compact Design:

• Compact dimensions (Length: 293 mm, Width: 40 mm, Height: 54 mm) for discreet integration.

Stepless Adjustment:

• Closer offers stepless adjustment for closing force.

Customizable Closing Speed:

• Closing speed is adjustable to meet specific requirements.

Latching Action Adjustment:

• Latching action is adjustable via valve for precise control.

Hydraulic Back Check:

• Integrated hydraulic back check is adjustable for controlled door movement.

Top Position for Force Adjustment:

• Closing force adjustment is positioned at the top for convenience.

Safety Features:

• Equipped with a safety valve against overload, ensuring reliable and safe operation.
