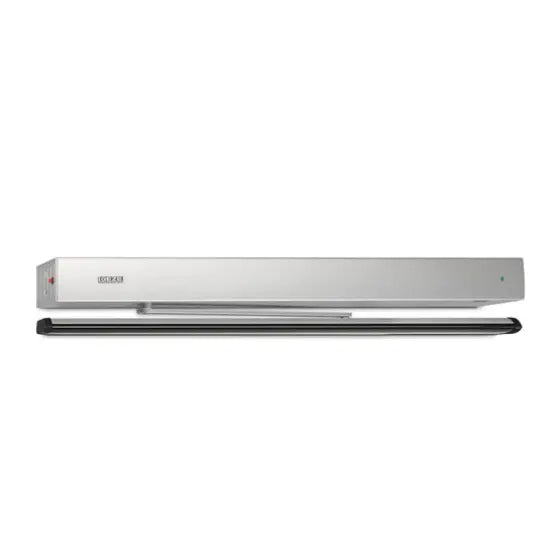

GEZE Powerturn Swing Door Operator - Advanced Automatic Door Control

• Application Areas:

  • Suitable for single-action, single leaf, right and left closing doors.
  • Designed for single-action doors up to 1600 mm leaf width or 600 kg weight.
  • Ideal for interior and exterior doors with high access frequency.

• Technical Data:

  • Powerturn model with a maximum leaf weight of 600 kg.
  • Leaf width ranging from 800 mm to 1600 mm.
  • Maximum reveal depth: 560 mm.
  • Maximum opening angle: 136 °.

• Installation Options:

  • Compatible with various installation options, including transom and door leaf installations.
  • DIN left and DIN right compatibility.
  • Mechanical and electrical latching action.

• Power and Connectivity:

  • Main switch in the drive for disconnection from mains.
  • Power supply for external consumers (24 V DC): 1.2 A.
  • Suitable for a service temperature range of -15 to 50 °C.

• Operation Modes and Functions:

  • Various modes of operation: Automatic, Off, Permanently open, Shop closing, Night.
  • Features automatic function, low-energy function, smart swing function, and servo function.
  • Obstacle detection and automatic reversing for safety.
  • Adjustable Push & Go functionality.

• Operation and Parameter Setting:

  • Programmable via Programme switch DPS, Programme switch integrated in the drive, MPS programme switch.
  • Parameter setting options include ST 220 service terminal, Programme switch DPS, GEZEconnects (PC + Bluetooth).

• Standard Conformity:

  • Complies with EN 16005 and DIN 18650 standards.
