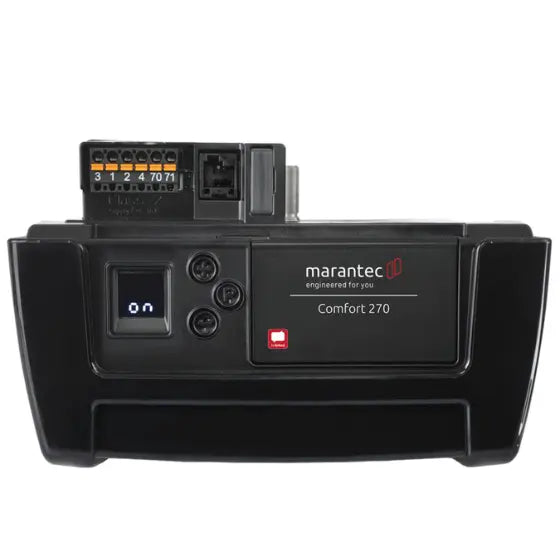

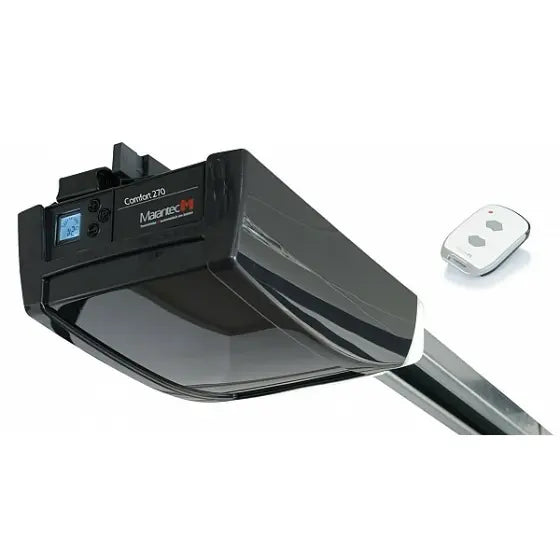

Marantec Comfort 270 Garage Door Operator-Home Door Opener

Features:

• Door Compatibility:

  • Suitable for doors up to 5.5m width, 165kg weight
  • Compatible with sectional, swing, overhead, and canopy doors

• Compact Drive:

  • Length adjustable by 143mm when rotated 90°

• DC Motor:

  • Soft start and stop for gentle door operation
  • Adjustable opening and closing speeds for compliance

• Integrated Control:

  • Illuminated LC display for easy programming
  • Connections for pushbutton, light barrier, wicket door contact, battery backup, and expansion boards

• Operation:

  • Multiple programming options via LC display, handheld programmer, smartphone app
  • Electronic limit stop for end position setting

• Functions:

  • Power-saving technology
  • Soft start/stop/run, electronic anti-deferral, blocking protection
  • Programmable settings for direction reversal, backjump, gate travel speed, soft run position and speed, cycle counter, error signaling, maintenance interval, reset function

Technical Data:

• Tensile and Compressive Force (max.): 750N

• Cycles: Max. 4 cycles per hour, 28 cycles per day

• Operating Voltage: 230V/1~

• Illuminant: 8-LED Module
