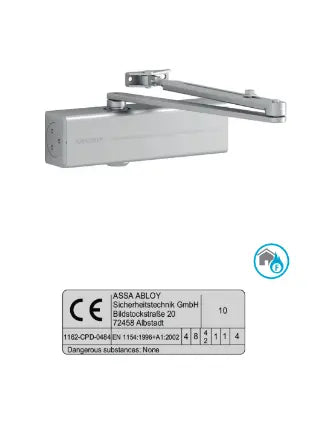

Assa Abloy DC200 Surface Mounted Door Closer

Assa Abloy DC200 Surface Mounted Door Closer - Excellence in Functionality

Elevate Your Entrances: Introducing the DC200 Surface Mounted Door Closer

Experience superior door control with the DC200 Surface Mounted Door Closer, a versatile and reliable solution designed to enhance the safety, accessibility, and longevity of your doors. Engineered for a wide range of applications, this rack and pinion door closer combines advanced features with robust construction to deliver consistent performance.

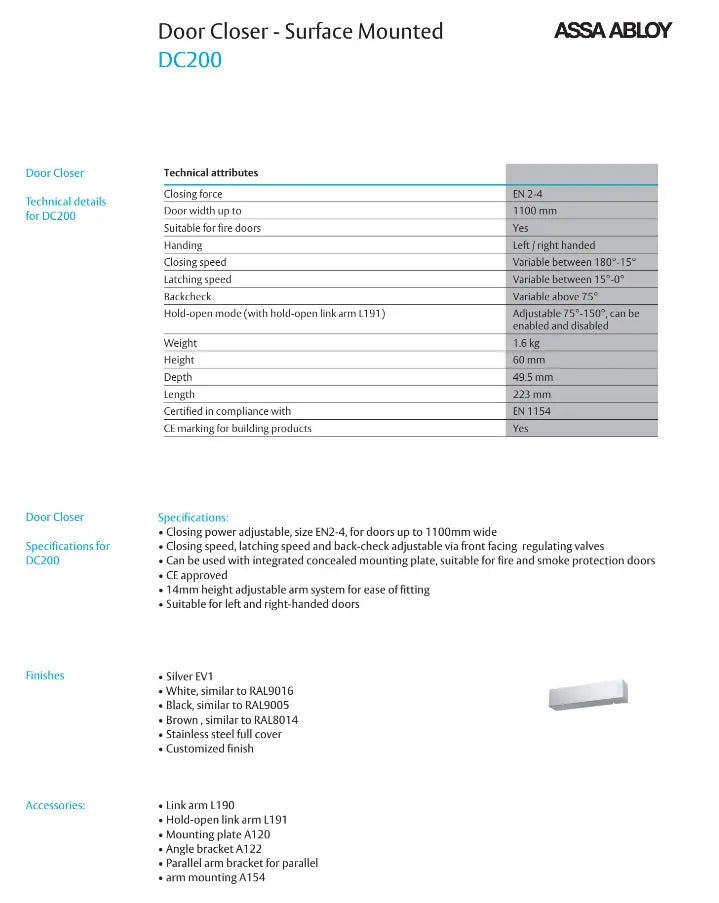

Key Features & Benefits:

• Adjustable Closing Control:
  • Closing speed, latching speed, and back-check are all easily adjustable via convenient front-facing regulating valves.
  • Closing speed is variable between 180° and 15°.
  • Latching speed is variable between 15° and 0°.
  • Back-check is variable above 75°.
  • Equipped with thermodynamic valves for consistent performance across varying temperatures.
• Flexible Closing Power: The closing force is adjustable, size EN2-4, making it suitable for doors up to 1100mm wide.
• Wide Application & Versatility:
  • Suitable for both left and right-handed doors.
  • Offers an opening angle up to 180°.
  • The link arm (L190) is height-adjustable up to 14mm for ease of fitting.
• Fire and Smoke Protection Ready:
  • Can be used with an integrated concealed mounting plate.
  • It is suitable for fire and smoke protection doors.
  • In compliance with EN1154, size 2-4, and is CE approved for building products.

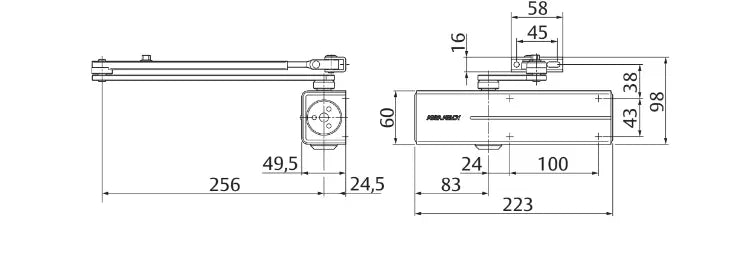

• Robust Construction: With a weight of 1.6 kg, and dimensions of 223 mm (Length), 60 mm (Height), and 49.5 mm (Depth), this closer is built for durability.

Optional Hold-Open Functionality (with L191 Hold-Open Link Arm):

For added convenience, consider the Hold-open link arm L191:

• Allows for an adjustable hold-open angle up to 150˚.
• The hold-open mode can be enabled and disabled as required.
• It has the same installation method as the standard link arm L190.
• Important Note: The hold-open link arm L191 cannot be used with fire and smoke protection doors.

Available Finishes to Match Your Decor:

The DC200 is available in a range of standard colours to seamlessly integrate with your door and frame:

• Silver EV1
• White, similar to RAL9016
• Brown, similar to RAL8014
• Black, similar to RAL9005
• Customized finishes are available upon request.

Enhance Your Installation with Accessories:

A range of accessories is available to ensure perfect installation and functionality:

• Mounting plate A120: For universal use and mounting with drilling template according to EN1154 Supplement 1 (fire and smoke protection doors).
• Angle bracket A122: For frame mounting in case of a deep jamb, reducing headroom by 70mm. Suitability for fire/smoke doors should be checked.
• Parallel arm bracket A154: For frame mounting in case of a deep jamb, reducing headroom by 70mm. Suitability for fire/smoke doors should be checked.
• Glass door shoe A164.
• Mounting plate A168 (for link arm).
• Full stainless steel cover A172.

Choose the DC200 Surface Mounted Door Closer for a reliable, adaptable, and high-performance solution that meets the demands of modern door control.

Quality Design for Every Door

The Assa Abloy DC200 Surface Mounted Door Closer is engineered for precision and reliability. It provides a seamless operation for various door types, enhancing accessibility while maintaining security. This door closer is designed to accommodate different building requirements, making it a versatile choice for residential and commercial applications. Because of its durable construction, it ensures longevity, offering excellent value.

Ease of Installation and Use

This door closer is easy to install, which saves time and effort for both professionals and DIY enthusiasts. Its surface-mounted design allows for quick mounting on the door frame, and because it's adjustable, users can customize the closing speed. So, whether you’re upgrading your home or outfitting a new office space, this door closer provides a user-friendly experience.

Safety and Performance Features

With the Assa Abloy DC200, safety is paramount. This product comes with adjustable closing forces, ensuring that doors close securely without slamming. Additionally, it features a delayed closing option, which is beneficial in high-traffic areas. Therefore, it not only promotes safety but also enhances the overall performance of your doors, making it an essential addition to any space.
