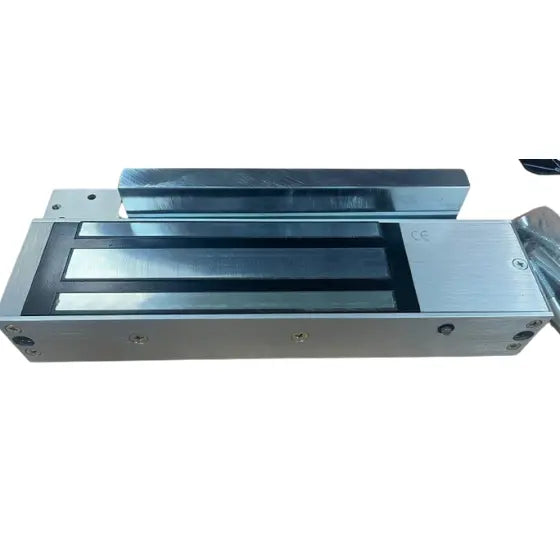

Versatile Compatibility: Designed for electric locking applications, this surface-mounted door magnet seamlessly integrates into your access control system.
Flexible Voltage Options: Operates on 12vDC or 24vDC (±15%), providing flexibility in power supply based on your system requirements.
Dual Coil Design: The dual coil configuration ensures reliable and efficient door holding, enhancing the overall security of your space.
Low Power Consumption: Nominal current of 480mA @ 12vDC and 240mA @ 24vDC ensures low power consumption, making it an energy-efficient solution.
Built-in Voltage Spike Suppressor: Equipped with a built-in suppressor, the door magnet protects against voltage spikes, ensuring the longevity of the system.
Monitoring and LED Indicator: Features a relay dry contact for monitoring purposes, coupled with an LED indicator for quick visual status checks.
Minimal Door Gap Requirement: With a maximum door gap of 3mm (1/8"), the door magnet provides secure holding even in tight configurations.
Adaptable Mounting Options: Suitable for both outward and inward opening doors, with options for surface mounting to the door frame header using 'L' and 'Z' brackets.
Sleek Brushed Satin Aluminum Housing: The magnet housing is crafted with brushed satin aluminum, offering a sleek and durable finish.
Immediate Release Mechanism: For quick release, ensure that the release switch breaks the circuit on the positive supply, ensuring immediate door release when needed.
