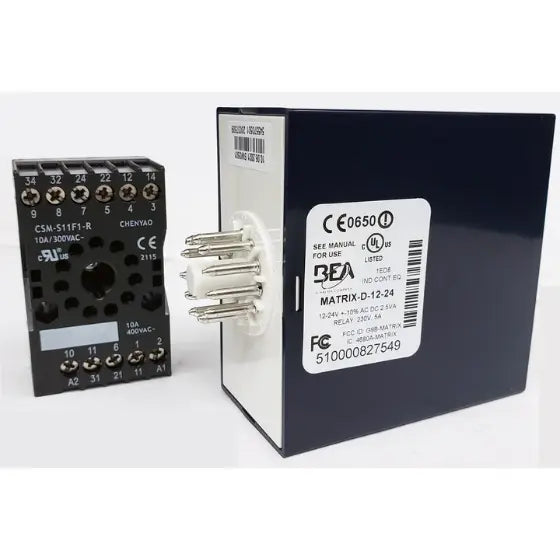

BEA vehicle loop detector Single channel vehicle loop detector

BEA vehicle loop detector

Overview of the BEA Vehicle Loop Detector

• Automatic Tuning: Features automatic tuning for simplified setup and operation.
• Connector: Equipped with an 11-pin male connector (86CP11) for easy installation.
• Flexible Presence Time: Allows presence time adjustment from 1 minute to infinity, catering to various requirements.
• Pulse Time Output: Offers pulse time output options of 100 ms or 500 ms for precise control.
• LED Indicators: Includes green LED for power indication and red LED for loop status indication.
• Wide Frequency Range: Operates within a frequency range of 20 kHz to 130 kHz, ensuring compatibility with different loop setups.
• Sensitivity Adjustment: Allows sensitivity adjustment within the range of 0.005% to 0.5% for fine-tuning.
• Fast Reaction Time: Provides a reaction time of 25 ms for swift detection.
• Power Supply Options: Compatible with 12-24 AC/DC (±10%) or 115 VAC (±10%) power supplies, offering flexibility.
• Wide Temperature Range: Works reliably within a temperature range of -22°F to 158°F (-30°C to 70°C), suitable for diverse environments.
• Robust Protections: Features loop insulation transformer, zener diodes, and gas discharge clamping for enhanced safety and durability.
• Inductance Range: Supports loop inductance ranging from 20 to 1000 μH, accommodating various loop configurations.
• Relay Outputs: Provides 2 relay outputs with free potential change-over contacts, capable of handling up to 230 VAC voltage and 5 A current for versatile applications.

Advanced Single Channel Vehicle Detection

The BEA vehicle loop detector is engineered to provide precise vehicle detection using a single channel loop system. This technology enables seamless monitoring of traffic flow and vehicle presence in gates, parking lots, and security checkpoints. It is designed for high sensitivity and reliable operation, reducing false triggers while adapting to various vehicle sizes. The single channel design simplifies installation and maintenance without compromising detection accuracy.

Robust Design for Diverse Applications

This BEA vehicle loop detector offers versatility across multiple applications including commercial, industrial, and government sectors. Its robust housing protects sensitive electronics from harsh environmental factors such as dust, moisture, and temperature fluctuations. The device supports a wide range of loop inductance and is compatible with many entry control systems. Its durable design ensures consistent performance over extended periods, making it ideal for high-traffic locations.

Easy Installation and User-Friendly Operation

Installation of the BEA vehicle loop detector is straightforward, minimizing setup time and operational disruptions. The detector features adjustable sensitivity and presence time settings to meet specific needs. Its user-friendly interface facilitates easy configuration by technicians, while onboard diagnostics help monitor system status and troubleshoot efficiently. This combination of ease and reliability makes the BEA vehicle loop detector a preferred choice for professionals seeking effective vehicle sensing solutions.
