Product Details:
-

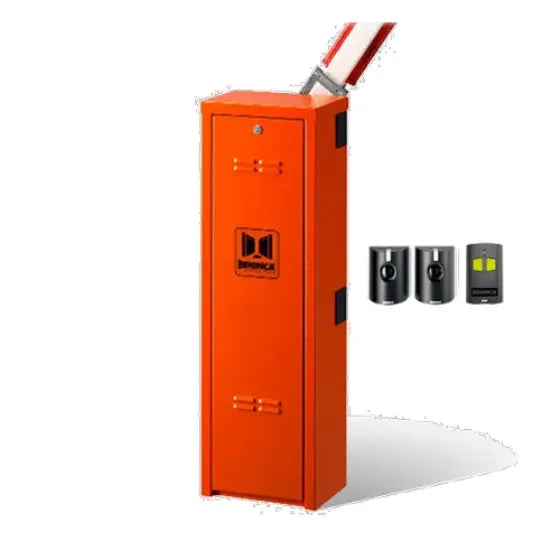

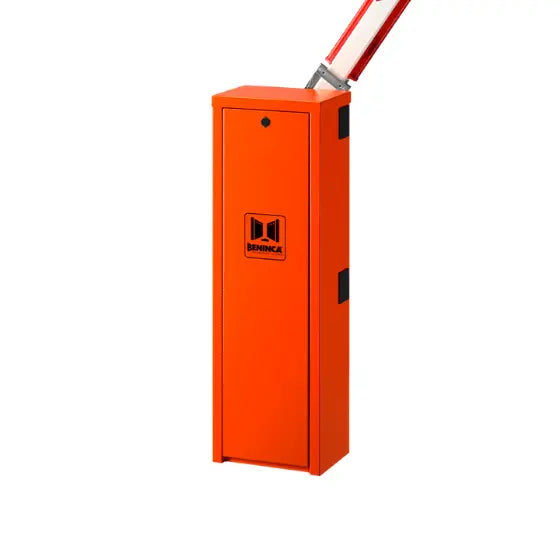

Usage: 24 Vdc barrier designed for intensive use, ensuring reliability and durability.
-
Integrated Control Unit: Equipped with an integrated control unit and battery charger for seamless operation.
-
Switching Power Supply: Power supply range of 100 to 250 Vac 50/60 Hz.
-
Installation Convenience: Easy installation with quick connection potential for operating opposed barriers via the SIS accessory board.
-
Energy Efficiency: Reduced energy consumption during standby mode for cost-effective operation.
-
Boom Balancing: Simple, fast, and reliable boom balancing system for smoother operation.
-
Adjustable Slow-Downs: Offers adjustable slow-downs for added safety and control.
Technical Specifications:
-
Power Supply: 100 to 250 Vac (50-60Hz)
-
Motor Supply: 24 Vdc
-
Max Absorbed Current: 3 / 1.5 A
-
Torque: 195 Nm
-
Opening Time: 3.5s to 6s
-
Duty Cycle: Intensive use
-
Protection Level: IP44
-
Operating Temperature: -20 to +50 C
-
Lubrication: GREASE
-
Passage Width: 4.0 m
-
Weight: 50.8 kg
✅ Warranty & After-Sales Support
All products include a minimum 1-year manufacturer warranty. Professional installation and after-sales support available across Dubai & UAE by our SIRA-certified team.
