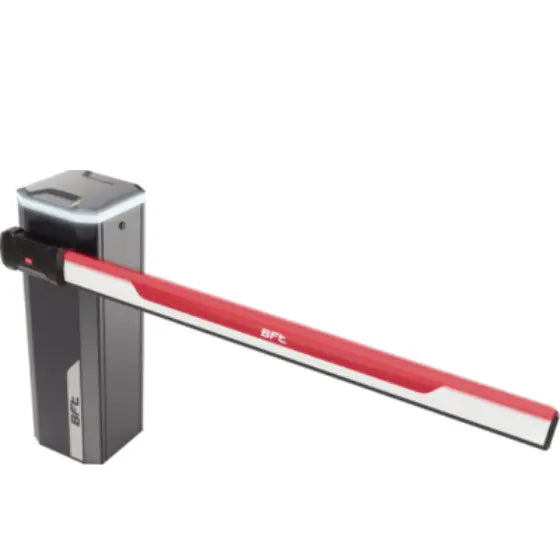

BFT Maxima Ultra 36 Gate Barrier 230V : Made in Italy, Up to 4m Arm Length

Key Features:

• Automatic Power Cut Opening: No additional UPS needed for automatic opening during power cuts.
• Entrance Control Range: Suitable for entrances spanning 2.5 to 3.0 meters.
• Adjustable Opening Time: Ranges from 0.8 to 1.2 seconds with deceleration for controlled operation.
• Versatile Installation: Ideal for public spaces like hospitals, car parks, and schools, meeting security regulations.
• Spring Version: Equipped with a version featuring a spring mechanism for enhanced functionality.
• RAL 7015 Color: Coated in RAL7015 for durability and aesthetic appeal.
• U-Link Embedded: Integrated U-Link for connectivity.
• Gearbox and Motor: Reversible oil bath gearbox, asynchronous three-phase motor with inverter.
• Optional Cap Lights: Cap with lights available as an optional feature.
• Anti-Vandalism System: Includes a mechanical crankshaft for added security against vandalism.

Specifications:

• Clear Opening: 2.5 to 3.0 feet
• Processing Type: RAL7015 cataphoresis coating and paint
• Control Unit: CSB Xtreme
• Motor Type: Three-phase asynchronous
• Motor Power Supply: 230 V
• Internal Lubrication: Oil bath
• Inverter: Included for controlled operation
• Slowdown: Yes
• Impact Reaction: Encoder-based
• Locking Mechanism: Mechanical locking
• Release: Inside the structure
• Frequency of Use: Continuous
• Mean Cycles Between Failures (MCBF): 7,000,000 Operations
• Environmental Conditions: -40°C to 55°C operating range
• Protection Rating: IP55 (dust and water resistance)
• Interconnectivity: Not available
