Briton 1130B TANDEM Door Closer – Double Closing Torque for Wide & Heavy Doors

Briton 1130B TANDEM Door Closer

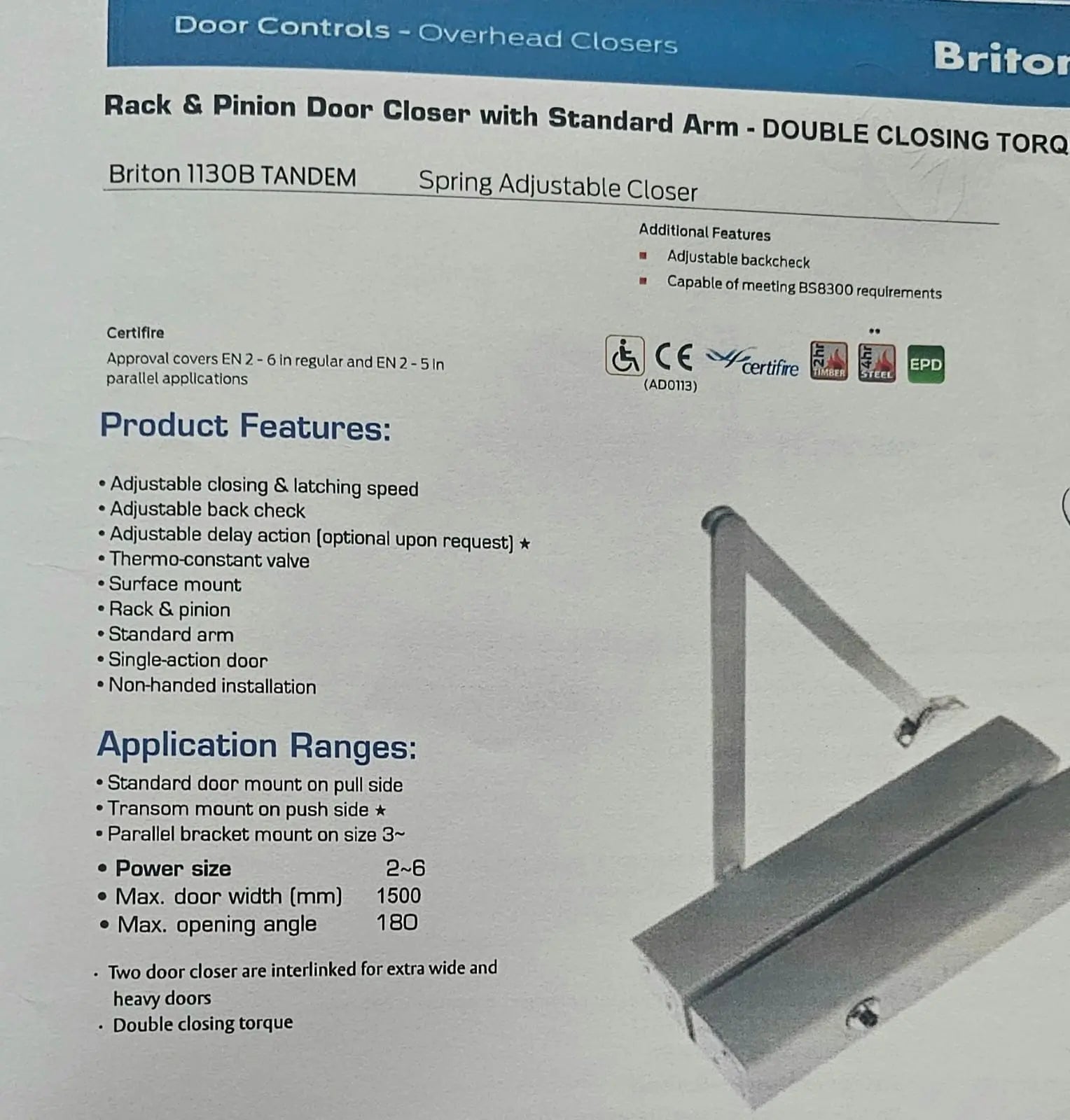

Rack & pinion door closer with standard arm – double closing torque. The Briton 1130B TANDEM is a spring-adjustable overhead closer set made of two interlinked closers, designed for extra-wide and heavy doors that a single closer cannot control.

Product Features:

• Adjustable closing & latching speed
• Adjustable backcheck
• Adjustable delay action (optional, upon request)
• Thermo-constant valve – consistent closing speed in hot and cold conditions
• Surface mount, rack & pinion mechanism, standard arm
• Single-action doors, non-handed installation
• Two closers interlinked for extra-wide and heavy doors – double closing torque

Specifications:

• Power size: EN 2–6 (regular applications), EN 2–5 (parallel applications)
• Maximum door width: 1500 mm
• Maximum opening angle: 180°

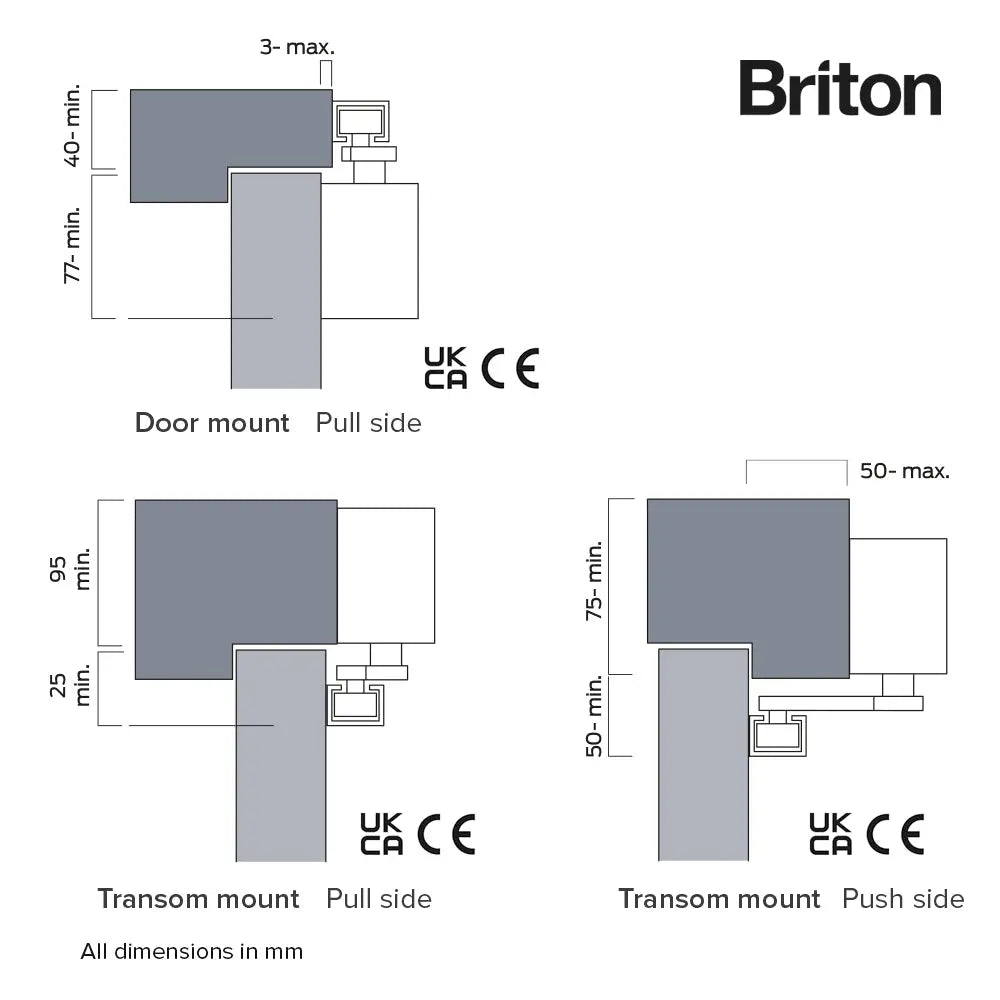

• Mounting: standard door mount (pull side), transom mount (push side, optional), parallel bracket mount (size 3+)

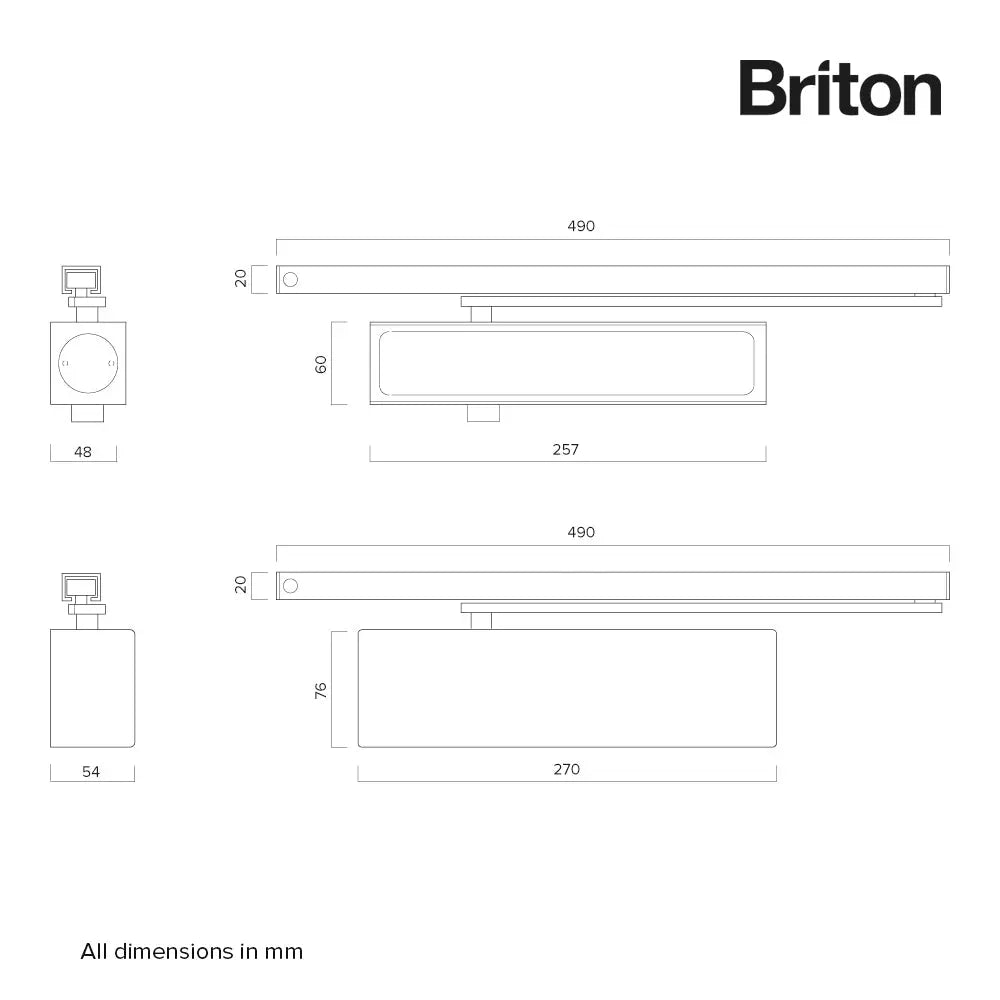

• Closer body length: 256.5 mm; mounting plate: 256.5 x 60 mm

Finishes:

• Anodized aluminium door closer body as standard
• Painted finish in silver, brown, gold, black, white and other RAL colours upon request
• Plating (cover only) – US finish code colours upon request

Tandem Set Consists Of:

• 2 pieces door closer
• 2 pieces mounting plate
• 1 piece link arm

Approvals & Compliance:

• Certifire approved (AD0113) – approval covers EN 2–6 in regular and EN 2–5 in parallel applications
• CE marked, EPD certified
• Fire rated per manufacturer datasheet: 2 hours (timber doors), 4 hours (steel doors)
• Capable of meeting BS 8300 accessibility requirements
