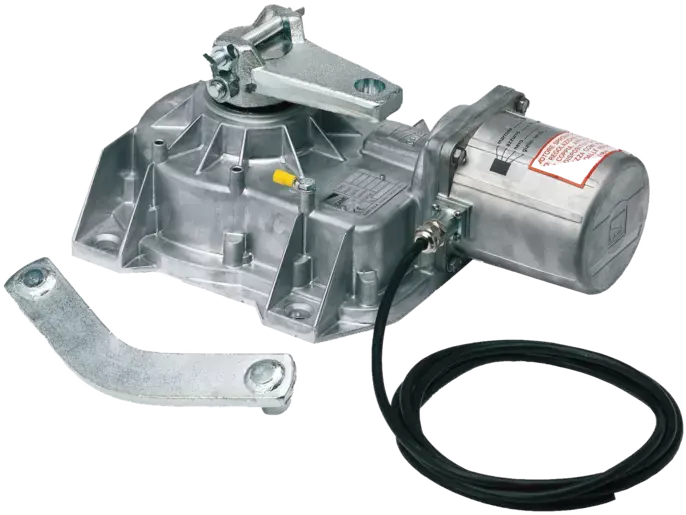

CAME FROG-A 230V Underground Swing Gate Operator Kit (Twin Motor Set) - Made in Italy

CAME FROG-A 230V Underground Swing Gate Operator Kit – Twin Motor Set

The CAME FROG-A is a fully concealed, underground swing gate operator – the invisible way to automate gate leaves up to 3.5 m and 400 kg. Ideal for villas, private homes and apartment buildings across Dubai and the UAE where a clean, motor-free look is required at the gate post. Made in Italy.

This complete twin-motor kit (for two-leaf gates) includes everything needed for a full installation:

1. Underground operator 230V FROG-A (001FROG-A) – 2 pcs
2. Foundation box with steel, 001FROG-CFN – 2 pcs
3. Key release and Euro-DIN cylinder, 001A4366 – 2 pcs
4. Control panel, 002ZA3P (two-leaf, with limit-switch control and slow-down adjusting) – 1 pc
5. Plug-in receiver, 001AF43S – 1 pc
6. Remote control 2CH – 2 pcs
7. Antenna, 001TOP-A433N – 1 pc
8. Safety photocell, 001DIR10 – 1 pair
9. Flashing light, 001KLED – 1 pc
10. Wall mounting kit, 001KIAROS – 1 pc
11. Push button 1CH (non-CAME) – 1 pc

Key specifications:

• Power supply: 230V AC, 50/60 Hz – 460 W, 1.9 A absorption
• Protection rating: IP67, weatherproof for outdoor UAE installation
• Max leaf width up to 3.5 m; max leaf weight up to 400 kg
• 90° manoeuvring time: 18 seconds
• Irreversible geared motor with adjustable mechanical limit switches
• Automatic re-hooking of the release system after manual gate operation

Supplied and supported by Merac across Dubai and the UAE. Ask about supply-only or supply-and-install pricing for your swing gate project. See also our automatic gate operators and the full CAME gate automation range.
