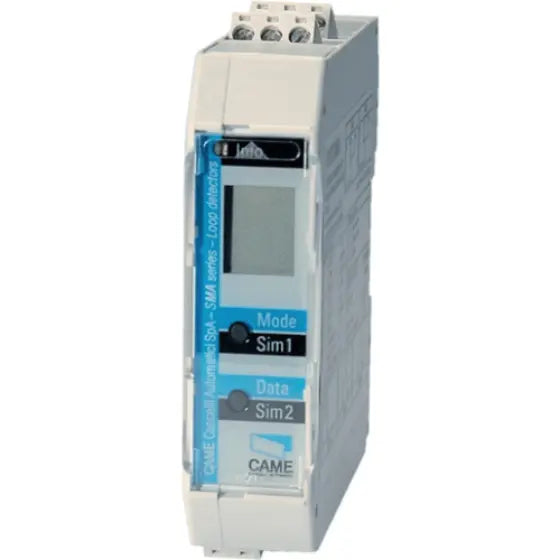

CAME Loop Detector 24V AC-DC - 009SMA2

CAME Loop Detector 24V AC-DC – 009SMA2

• Dual Channel Functionality: CAME 009SMA2 Magnetic Loop Detector allows installation of two magnetic loops for automatic exit, safety, or presence detection purposes.
• Versatile Application: Can be used with loops installed in the ground for various purposes, such as triggering gates or serving as safety loops.
• Wide Power Supply Compatibility: Supports both 24VAC (-20% to +10%) and 24VDC (-10% to +20%) power supplies, with maximum power consumption of 2 VA or 1.5 W respectively.
• Reliable Loop Detection: Capable of detecting loops with inductance ranging from 20 to 1000 µH, with ideal range between 80 to 300 µH.
• Long Loop Connection Wiring: Allows for loop connection wiring up to 100 meters at 1.5 mm² for inductance between 20-40 µH, and up to 200 meters for inductance greater than 40 µH, ensuring flexibility in installation.
• Secure Loop Connection: Features plug-in terminals for easy and secure wiring installation.
• High-Quality Output Relays: Provides reliable output relays with maximum ratings of 240VAC/2A or 30VDC/1A for loop activation, and 40VACDC/0.3A for alarm output.
• Compact and Easy Mounting: Compact dimensions of 22.5x94x88 mm and direct DIN rail mounting make installation straightforward and space-efficient.
• Durable Construction: Designed with IP20 protection class, operating temperature range of -20°C to +60°C, and storage temperature range of -40°C to +70°C, ensuring durability in various environments.
• Humidity Resistant: Suitable for use in environments with air humidity below 95% non-condensing, further enhancing reliability.
