Ditec sliding door automation Ditec Rex S Automation for sliding doors Entramatic 4.4 meter

Ditec sliding door automation

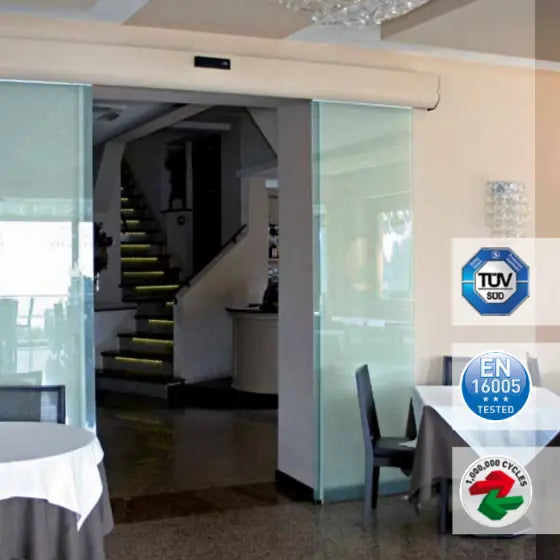

Ditec sliding door automation sliding doors Ditec Rex S – Automatic Sliding Door

Key Features:

• Designed for High Traffic Areas – Ideal for shopping malls, public buildings, and other environments with heavy pedestrian movement.
• Easy Installation – Comes with a pre-assembled traction unit and electronic control panel for quick setup.
• Versatile & High-Tech – Compatible with various sensors and equipped with an advanced electronic system with kinematic control via encoder.
• Reliable & Safe – Fully compliant with European directives, including EN 16005, and tested for 1,000,000 cycles.

Technical Specifications:

• Capacity:
  • 100 kg (Single-wing)
  • 140 kg (Double-wing)
• Endurance Test: 1 million cycles
• Power Supply: 230 V AC / 50-60 Hz
• Power Input: 0.5 A

Performance:

• Maximum Opening Speed:
  • 0.6 m/s (Single-wing)
  • 1.2 m/s (Double-wing)
• Maximum Closing Speed:
  • 0.6 m/s (Single-wing)
  • 1.2 m/s (Double-wing)

Control & Safety Features:

• Manual Release Handle – Allows manual opening in case of emergency.
• Operating Temperature: -20°C to +55°C (-10°C to +50°C with optional batteries)
• Protection Rating: IP 20
• Control Panel: EL20
• Motor Power Supply: 24 V DC / 8 A
• Accessories Power Supply: 24 V DC / 0.5 A
• Electromechanical Lock: 24 V DC / 1 A
• Obstacle Detection – Automatically stops during opening or reverses when closing.
• Adjustable Opening & Closing Speed – Customizable for different operational needs.
• Independent Controls:
  • Opening & Partial Opening
  • Closing Control (optional with MP1 module)
• Automatic Closing Timer: Adjustable from 0 to 30 seconds
• Self-adjusting Closing Time – Adapts based on pedestrian flow.
• Safety Compliance:
  • Emergency Reverse with Presence Sensor (EN 16005 compliant)
  • Built-in Photocell Amplifier
  • Safety Monitoring & Testing Functions

This automatic sliding door is a high-performance, safe, and energy-efficient solution for high-traffic environments, ensuring smooth operation and enhanced security.
