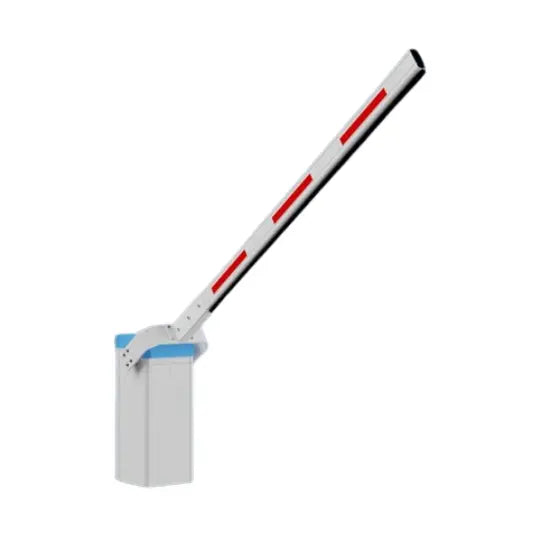

ELKA gate barrier Machine Model ES60 24V, Made In Germany – Up to 6MTR Arm Length

ELKA gate barrier

ELKA gate barrier Machine Model ES60 24V, Made In Germany – Up to 6MTR Arm Length

• Smooth and Controlled Operation:

  • Advanced Technology: Combines a brushless DC servo motor with a sinusoidal lever system for smooth, bounce-free gate arm movement.
  • Aesthetic and Durable: Provides an aesthetically pleasing operation with a focus on long-term reliability.

• Robust Drive Technology:

  • Powerful Performance: Features a 24V brushless DC motor with a strong planetary gear system for powerful and efficient gate movement.
  • Durable Construction: Built with galvanized steel to ensure durability and protection from environmental factors.

• Reinforced Housing:

  • Designed for Harsh Environments: High-grade aluminum housing combined with patent-pending clamping technology offers superior strength and corrosion resistance.
  • Enhanced Protection: Powder-coated finish adds an extra layer of corrosion protection, ensuring long-lasting performance.

• Key Features:

  • Multifunction Controller: Includes 6 programmable relay outputs and 6 programmable inputs, including UL safety input.
  • Versatile Power Input: Operates on 88-264VAC, 47-63Hz with a 100% duty cycle.
  • Long-Lasting: Engineered for up to 10 million cycles, certified to UL/ETL/CAN/CSA 325 and CE standards.
  • Adjustable Speeds: Customize gate speed to suit your needs.
  • Efficient Design: Features 3 loop detectors, adjustable "Gate Open" position, and LED light interface logic.
  • Vandalism Protection: Includes breakaway bolts and vandalism protection to minimize repair costs.
  • Flexible Installation: Easily set up left or right-handed versions in the field within minutes.
  • Traffic Management: Integrated traffic light logic and auto-reverse feature for enhanced safety.
  • Manual Override: Equipped with a manual emergency release for quick access when needed.
  • Spacious Housing: Ample space inside the housing for additional components and easy service access.

• Wide Operating Range:

  • Temperature Resilience: Operates efficiently in extreme temperatures ranging from -22°F to +158°F, making it suitable for various climates.
