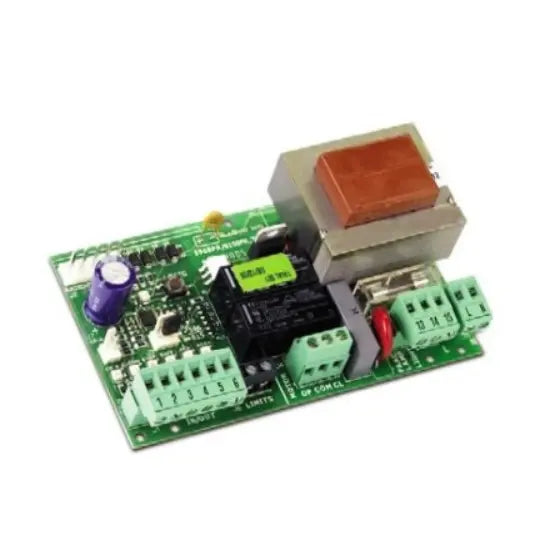

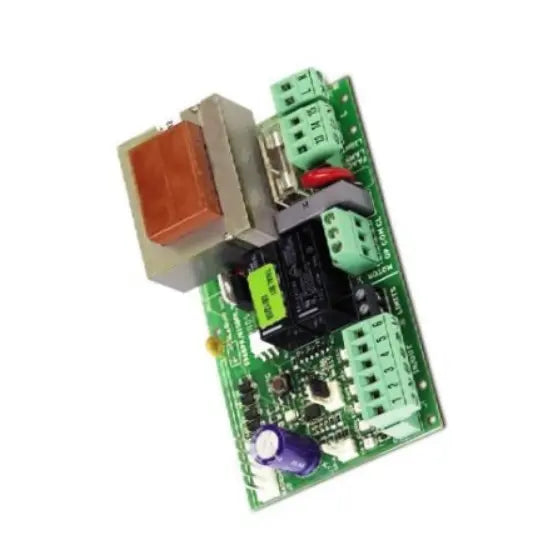

FAAC 596/615 BPR Electronic Control Unit for Automatic Barriers - Advanced Barrier Control Technology

Key Specifications:

• Power Supply Voltage: 230Vac (+6%-10%) 50(60)Hz
• Absorbed Power: 4 Watt
• Motor Max Load: 800 Watt
• Accessories Max Current: 250mA
• Operating Ambient Temperature: -20°C to +55°C
• Protection Fuses: F1=6.3A - 250V; F2= Self-resetting
• Function Logics: B/C - B - C - EP - AP - P - Default=EP
• Work Time (Time Out): Self-learning (0-10min with steps of 2.5sec) - Default=10min
• Pause Time: Self-learning (0-5min with steps of 1.5sec) - Default=30min

Terminal Board Inputs:

• Open
• Close
• Stop
• Closing Safety Devices
• Limit Switches
• Power Supply

Terminal Board Outputs:

• Motor
• Flashing Lamp
• Courtesy Light
• Accessories Power Supply
