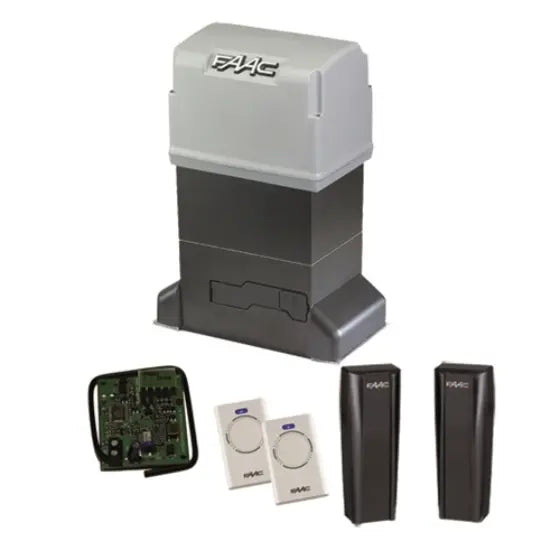

FAAC 844ER Sliding Gate Kit 1800 KG-Premium Automatic Gate System

• Maximum Anti-Crushing Safety:
  • Twin-disk oil-bath clutch coupled with electronic device and encoder for enhanced safety.
• Versatile Design:
  • Magnetic limit switch for precise control.
  • Adjustable fastening for both height and side.
• Powerful Performance:
  • Power Supply Voltage: 220-240V~ 50/60 Hz.
  • Asynchronous single-phase electric motor with a max power of 660 W.
• High Torque and Force:
  • Max torque of 37 Nm.
  • Max expressed force of 1,160 N.
• Efficient Operation:
  • Reduction ratio of 1:30 for smooth and efficient performance.
  • Designed for a maximum leaf width of 40 m.
• Speed and Control:
  • Leaf speed of 9.5 m/min.
  • Speed adjustment and motor control capabilities.
• Reliable Limit Switch:
  • Magnetic limit switch for accurate and reliable positioning.
  • Z16 module 4 pinion.
• Encoder Technology:
  • Equipped with a magnetic encoder for precision.
• Adjustability and Safety:
  • Force adjustment through a twin-disk clutch in oil-bath and via board.
  • Operating ambient temperature range from -20°C to +55°C (+65°C at 50% frequency of use).
• Safety Features:
  • Thermal protection at 120°C.
  • Protection class IP44 for durability.
• Compact and Durable:
  • Weighs 14.5 Kg.
  • Uses FAAC HP OIL as the type of oil.
• Dimensions:
  • Dimensions (LxDxH): 277 x 155 x 388 mm.
• High Capacity:
  • Max leaf weight capacity of 1,800 Kg.
• Frequency of Use:
  • Designed for 70% frequency of use.
• Electronic Equipment:
  • Incorporates 780D electronic equipment for advanced functionalities.
