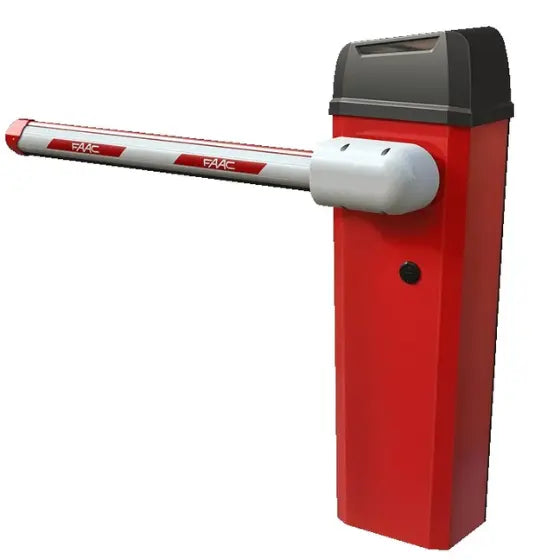

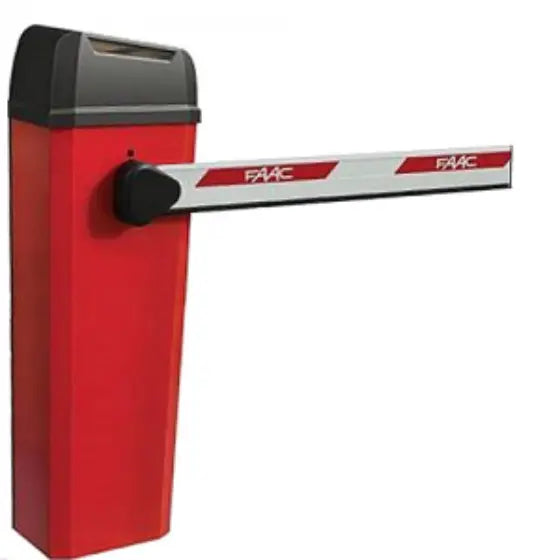

FAAC Automatic Gate Barrier B614: 5-Meter Span for Secure Access Control

FAAC

FAAC Automatic Gate Barrier B614: 5-Meter Span for Secure Access Control

Key Features:

• Modern Design: Stylish and contemporary appearance.
• Easy Installation: Simple to install, suitable for both LEFT or RIGHT opening.
• High Performance: Offers a 100% duty cycle for continuous use.
• Fast Operation: Opens in less than 2 seconds with a 3m boom attached.
• Intuitive Programming: Easy configuration through buttons and display.
• Safety Measures: Includes reflective safety stickers on the boom and an inbuilt encoder for anti-crushing protection.

Technical Specifications:

• Model: B614
• Power Supply Voltage: 220-240V ~ 50/60 Hz
• Motor Type: 24V DC with brushes
• Max Power: 165 W
• Max Torque: 300 Nm
• Material Type: Steel with pre-hot dip galvanized treatment and polyester powder coating
• Encoder: Incremental integrated in the motor
• Deceleration Type: Electronic + mechanic
• Beam Type: Rectangular and round
• Operating Ambient Temperature: -20°C to +55°C
• Protection Class: IP55 (Electronic control unit) - IP44
• Weight: 40 Kg
• Dimensions (LxDxH): 360 x 250 x 1163 mm (installation base: 305 x 230 mm)
• Beam Max Length: 5 m
• Opening Time: < 2 s (80°- 3m)
• Use Frequency: Continuous use
• Electronic Equipment: E614
