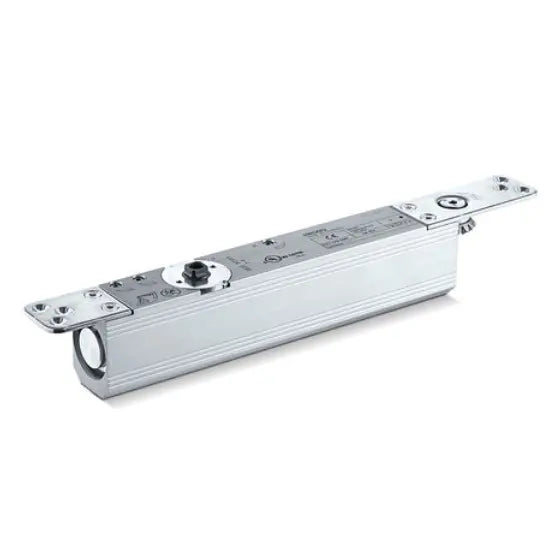

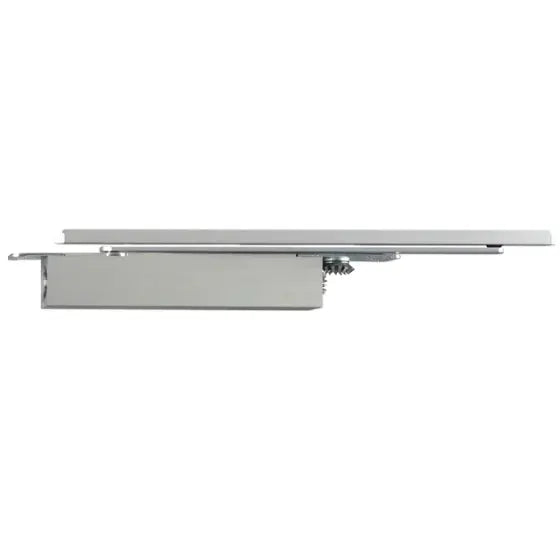

GEZE Boxer 2-4 Heavy Duty Concealed Door Closer with Guide Rail - Commercial Grade, Concealed Design

GEZE Boxer 2-4

GEZE Boxer 2-4: Heavy Duty Concealed Door Closer

1. Versatile Application:
   • Suitable for fire and smoke protection doors, requiring proof of suitability for the door.
2. Single-Action Door Compatibility:
   • Designed for right and left single-action doors.
3. Door Size Coverage:
   • Accommodates single-action doors up to 1100 mm leaf width, supporting door weights up to 130 kg.
4. Adaptable Door Thickness:
   • Suitable for door leaf thicknesses from 40 mm.
5. Integrated Installation:
   • Features integrated installation for a seamless and concealed appearance.
6. Technical Specifications:
   • Closer Body:
     • Boxer 2-4
   • Closing Force:
     • Adjustable in accordance with EN 1154 standards (EN 2 - 4).
   • Leaf Width (Max.):
     • 1100 mm
   • Leaf Weight (Max.):
     • 130 kg
   • Opening Angle (Max.):
     • 120 °
   • Identical Design for DIN Left and DIN Right:
     • Yes
   • Standard Conformity:
     • Complies with EN 1154:1996/A1:2002/AC:2006 standards.
   • Fire Protection Suitability:
     • Suitable for fire protection doors.
7. Compact Design:
   • Compact dimensions (Length: 286 mm, Width: 32 mm, Height: 45 mm) for discreet integration.
8. Stepless Adjustment:
   • Closer offers stepless adjustment for closing force.
9. Customizable Closing Speed:
   • Closing speed is adjustable to meet specific requirements.
10. Latching Action Adjustment:
    • Latching action is adjustable via valve for precise control.
11. Hydraulic Back Check:
    • Integrated hydraulic back check is adjustable for controlled door movement.
12. Top Position for Force Adjustment:
    • Closing force adjustment is positioned at the top for convenience.
13. Safety Features:
    • Equipped with a safety valve against overload, ensuring reliable and safe operation.

Unmatched Durability and Performance

The GEZE Boxer 2-4 is a heavy-duty concealed door closer designed for commercial applications. It excels in high-traffic areas because it offers remarkable durability and performance. This door closer not only ensures smooth door operation but also withstands daily wear and tear, making it a reliable choice for any business.

Innovative Concealed Design

With its concealed design, the GEZE Boxer 2-4 seamlessly integrates into the door frame, enhancing the aesthetic appeal of your space. Customers appreciate this feature because it maintains a clean look without compromising functionality. This door closer is an excellent choice for anyone wanting to improve the overall design of their entrances while ensuring safety and compliance with building regulations.

Easy Installation and Adjustable Settings

This door closer is designed for easy installation, which is beneficial for contractors and builders. The adjustable settings allow for tailored closing speeds and force, so it can accommodate various door sizes and weights. As a result, the GEZE Boxer 2-4 proves to be not only a practical solution but also a versatile one for various commercial settings.
