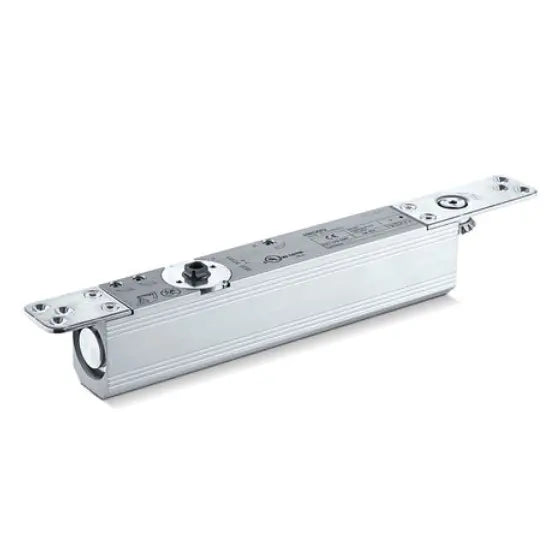

GEZE Boxer 3-6 Concealed Door Closer

GEZE Boxer 3-6 Concealed Door Closer

GEZE Boxer 3-6 Concealed Door Closer

1. Versatile Application:
   • Suitable for fire and smoke protection doors, requiring proof of suitability for the door.
2. Single-Action Door Compatibility:
   • Designed for right and left single-action doors.
3. Large Door Coverage:
   • Accommodates single-action doors up to 1400 mm leaf width, supporting door weights up to 180 kg.
4. Adaptable Door Thickness:
   • Suitable for door leaf thicknesses from 50 mm.
5. Integrated Installation:
   • Features integrated installation for a seamless and concealed look.
6. Technical Specifications:
   • Closer Body:
     • Boxer 3-6
   • Closing Force:
     • Adjustable in accordance with EN 1154 standards (EN 3 - 6).
   • Leaf Width (Max.):
     • 1400 mm
   • Leaf Weight (Max.):
     • 180 kg
   • Opening Angle (Max.):
     • 120 °
   • Identical Design for DIN Left and DIN Right:
     • Yes
   • Standard Conformity:
     • Complies with EN 1154:1996/A1:2002/AC:2006 standards.
   • Fire Protection Suitability:
     • Suitable for fire protection doors.
7. Compact Design:
   • Compact dimensions (Length: 293 mm, Width: 40 mm, Height: 54 mm) for discreet integration.
8. Stepless Adjustment:
   • Closer offers stepless adjustment for closing force.
9. Customizable Closing Speed:
   • Closing speed is adjustable to meet specific requirements.
10. Latching Action Adjustment:
    • Latching action is adjustable via valve for precise control.
11. Hydraulic Back Check:
    • Integrated hydraulic back check is adjustable for controlled door movement.
12. Top Position for Force Adjustment:
    • Closing force adjustment is positioned at the top for convenience.
13. Safety Features:
    • Equipped with a safety valve against overload, ensuring reliable and safe operation.

Enhanced Aesthetics

The GEZE Boxer 3-6 Concealed Door Closer is designed to blend seamlessly into any architectural style. This door closer is concealed within the structure of the door, meaning that it doesn't disrupt the aesthetic appeal of your space. Because of its sleek design, it can be installed in residential or commercial environments, providing elegance without compromise.

Reliable Performance

This door closer is not just about looks; it excels in delivering consistent and reliable performance. The GEZE Boxer 3-6 is adjustable, allowing you to set the closing speed and force, ensuring doors close quietly and smoothly every time. Therefore, you can trust its functionality even in high-traffic areas, as it stands up to daily use without fail.

Easy Installation and Maintenance

Installing the GEZE Boxer 3-6 is straightforward due to its well-designed features and included instructions. This product is built for durability, which means maintenance is minimal. Regular checks can keep it functioning optimally, so you save time and effort in the long run. Because of these advantages, it is an ideal choice for contractors and DIY enthusiasts alike.
