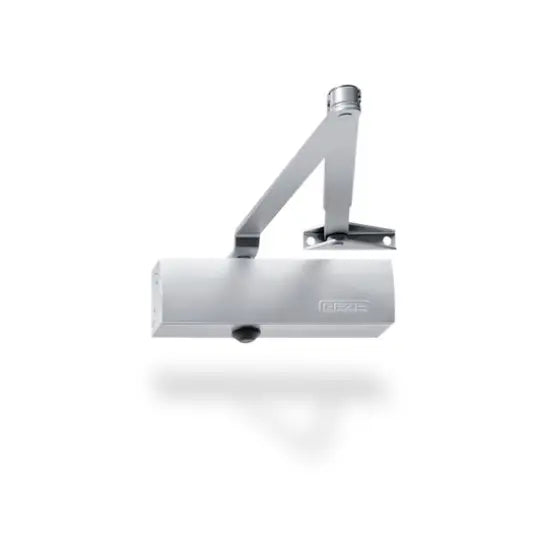

Geze door closer TS 1500 Door Closer Silver Finish For Swing Doors

Geze door closer

Geze door closer TS 1500 Door Closer Silver Finish For Swing Doors

• Application Areas: Geze door closer

  • Suitable for right and left single-action doors for interior use.
  • Supports single-action doors with a maximum leaf width of 1100 mm.
  • Can be installed on the door leaf hinge side, opposite hinge side, or on the transom opposite the hinge side.
  • Compatible with parallel arm installation for opposite hinge side door leaf installation.

               Technical Data: Geze door closer

• • • Model: TS 1500
    • Closing Force: EN 3/4 in accordance with EN 1154.
    • Barrier-Free Compliance: Meets DIN 18040 standards for doors with a maximum leaf width of 1100 mm.
    • Leaf Width (Max.): 1100 mm.
    • Type of Installation:
      • Door leaf installation hinge side.
      • Door leaf installation opposite hinge side.
      • Transom installation opposite hinge side.
    • Opening Angle (Max.): 180°.
    • Fire Protection: Suitable for fire protection doors.

  • Adjustability:

    • Closing Force: Adjustable via installation for tailored performance.
    • Closing Speed: Adjustable for smooth and controlled door closure.
    • Latching Action: Adjustable via link arm for precise door latching.

  • Enhanced Features:

    • Ensures controlled and reliable door closing.
    • Built for long-lasting performance with high-quality materials.
    • Suitable for a wide range of interior door applications.
