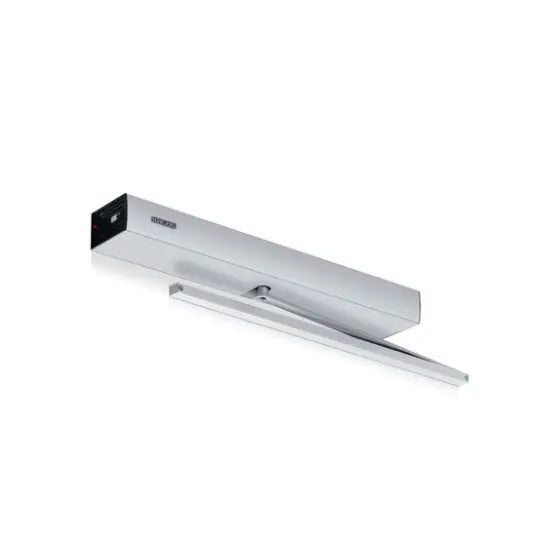

GEZE EMD-F Swing Door Operator - Smooth and Silent Automation

GEZE EMD-F Swing Door Operator - Smooth and Silent Automation

• Application Areas:

  • Ideal for Fire and Smoke Protection Doors.
  • Suitable for single-action, single-leaf, right and left closing doors.
  • Designed for single-action doors up to 1400 mm leaf width or 230 kg weight.
  • Perfect for interior and exterior doors with high access frequency.

• Technical Data:

  • Slimdrive EMD-F model with a height of 70 mm and depth of 121 mm.
  • Maximum leaf weight of 230 kg for single-leaf doors.
  • Hinge clearance for 2-leaf doors ranging from 1500 mm to 2800 mm.
  • Leaf width for single-leaf doors: 750 mm to 1400 mm.
  • Maximum reveal depth: 400 mm.
  • Maximum door overlap: 30 mm.

• Drive and Operation:

  • Electromechanical drive type.
  • Maximum opening angle of 130°.
  • Spring pre-load options: EN4 - EN6.
  • DIN left and DIN right compatibility.
  • Various installation options for transom and door leaf.

• Safety and Control:

  • Mechanical and electrical latching action.
  • Electrical closing sequence control.
  • Safety features include obstacle detection and automatic reversing.
  • Adjustable Push & Go functionality.

• Power and Connectivity:

  • Operates on 230 V operating voltage.
  • Power rating of 230 W.
  • Power supply for external consumers (24 V DC): 1000 mA.
  • Connectivity options include GEZEconnects (PC + Bluetooth) and ST 220 service terminal.

• Operation Modes:

  • Fully automatic with various operation modes: Off, Automatic, Permanently open, Shop closing, Night.

• Compliance and Suitability:

  • Complies with standards DIN 18263-4, DIN 18650, EN 16005.
  • Specifically suitable for fire protection doors.

CUSTOMER NOTE : SUBJECT TO PRIOR SALE

Overview of the GEZE EMD-F

The GEZE EMD-F Swing Door Operator is designed to provide smooth and silent operation for swing doors. This innovative solution enhances accessibility in various settings like offices, hospitals, and commercial spaces. Users appreciate its seamless integration into existing structures, making it an excellent choice for both new installations and retrofits. The compact design eliminates bulkiness while ensuring optimal performance, which is essential for locations with high foot traffic.

Key Features and Benefits

One of the standout features of the GEZE EMD-F is its advanced motor technology. This allows the operator to open and close doors effortlessly, minimizing noise and enhancing user comfort. Additionally, the system can be adjusted to meet diverse needs, including different closing speeds and force levels. Because of these customizable settings, the GEZE EMD-F suits various operational requirements, making it the go-to choice for architects and builders alike.

Safety and Efficiency

Safety is a top priority for the GEZE EMD-F Swing Door Operator. It is equipped with multiple sensors that detect obstacles, ensuring that the doors stop automatically if someone walks through. This feature reduces the risk of accidents and injuries, especially in busy environments. Moreover, the operator's energy-efficient design not only meets but often exceeds industry standards, making it a sustainable option for modern buildings.
