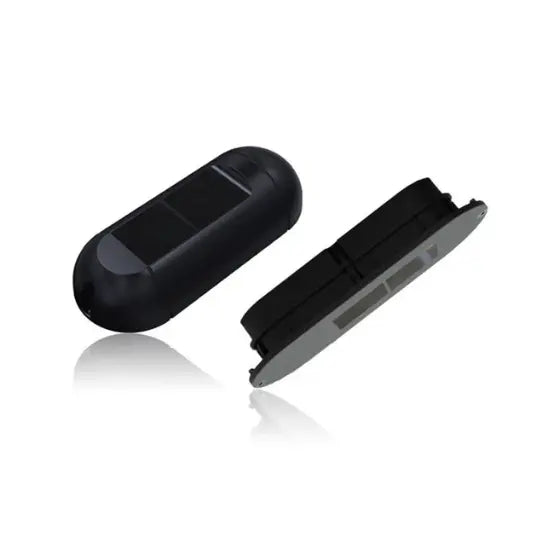

High-Performance Laser Safety Sensor for Vehicle and Human Body Detection - Entrance & Exit Safety Protection

Product Application:

• Widely used in road gates, garage doors, electric doors, automatic doors, and other vehicle (human body) detection and safety protection applications.

Overall Characteristics:

• Utilizes TOF (Time-of-Flight) technology for precise human body detection.
• Equipped with industrial-grade enhanced laser tubes for minimal laser attenuation.
• Resistant to headlights, metal interference, and features IP67 waterproof rating.

Technical Parameters:

• Product Size (mm): 125 x 50 x 118
• Detection Principle: Time-of-Flight technology (TOF)
• Light Medium: 890nm infrared laser
• Laser Category: Class Ⅰ eye-safe laser
• Detection Response Time: ≤50ms
• Detection Range: 80cm~1000cm
• Working Temperature: -20°C~60°C
• Waterproof Grade: IP67
• Working Voltage: AC/DC 12-30V
• Standby Current: 52mA, Action Current: 74mA (12V power)
• Signal Output: Relay NO or NC
• Trigger Mode: Moving or stationary
• Function Instruction: LED indicator, Standby (BLUE), Detection (RED)
