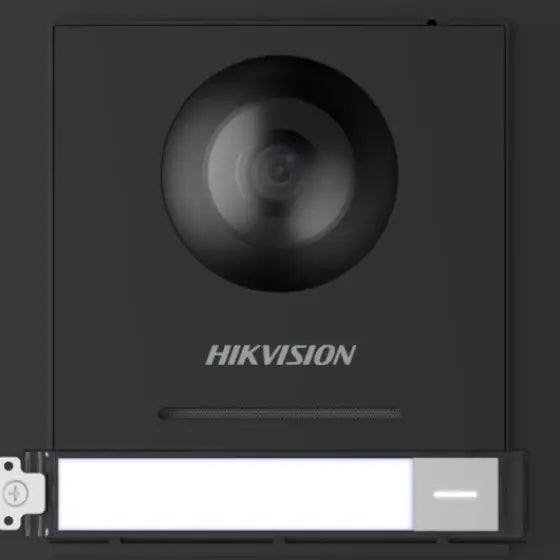

HIKVISION Video Intercom Module Door Station with Flush Mount-Entry Door Surveillance

• Modular Door Station Main Unit: The central component of a video intercom system.
• 2MP HD Colorful Camera: High-definition video quality with a fisheye lens and IR supplement for clear visuals.
• 1 Call Physical Button: Easily initiate calls at the door station.
• 2 Lock Relays: Control access to your property with support for two locks.
• 4-Channel Alarm Input: Connect and monitor up to four alarm devices for added security.
• IP65 Weatherproof: Suitable for outdoor installation with protection against dust and water.
• Power Options: Can be powered using 12VDC or standard PoE (IEEE 802.3af).
• Video Intercom: Communicate with indoor and master stations for secure access control.

System Parameters:

• Processor: Embedded MCU processor for efficient operation.
• Operation System: Runs on an embedded Linux operating system.

Video Parameters:

• IR Supplement: Infrared supplement light for enhanced night vision.
• Video Compression: H.264 video compression standard.

Audio Parameters:

• Built-in Microphone: Features a built-in omnidirectional microphone.
• Built-in Loudspeaker: Equipped with a loudspeaker with over 85 dB of sound within 20 cm.
• Audio Compression: Utilizes noise suppression and echo cancellation for high-quality audio.

Network Parameters:

• Ethernet: Supports 10/100 Mbps self-adaptive Ethernet for network connectivity.
• Network Protocol: Utilizes TCP/IP and RTSP for network communication.

Device Interfaces:

• Alarm Input: Offers tampering alarm functionality.
• I/O Input/Output: Four input and two output ports for connecting external devices.

General:

• Power Supply: Can be powered with 12VDC or standard PoE (IEEE 802.3af).
• Low Power Consumption: Energy-efficient design with a power consumption of 4W.
• Wide Temperature Range: Operates in extreme temperatures from -40°C to +55°C (-40°F to 131°F).
• Weatherproof: IP65-rated for protection against weather conditions.
• Multiple Language Support: User interface available in multiple languages.
