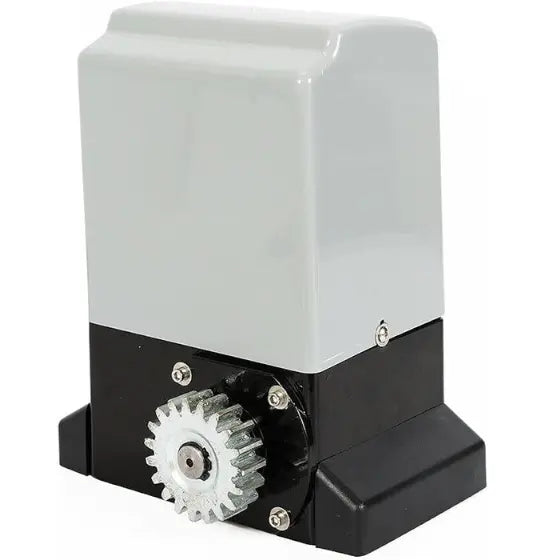

MERAC 1000 kg Sliding Gate Operator: High-Performance Gate Automation

• Robust Brushless Waterproof Motor: Features a high-speed pure copper core motor ensuring stable operation and ultra-quiet functionality.
• Advanced Control Chip: Offers multi-function wiring ports, multi-speed adjustment, resistance adjustment, and door closing delay for added convenience.
• Ultra-Quiet System: Ensures a prolonged operating life with minimal maintenance requirements.
• Infrared Sensor Installation: Stops and reverses the door if an obstacle is detected during the closing process within the sensor's range.
• Manual Release Key: Equipped with a manual release option for use during power outages or remote loss.
• Versatile Voltage Support: Compatible with 230V/110V/24V power systems.
• Various Safety Features: Includes soft start/stop, resistance stop, overload protection, infrared protection, and reserve power functionality.
• High Gate Weight Capacity: Suitable for gates weighing up to 1000 kg.
• Flexible Application: Ideal for residential, commercial, and courtyard use.
• Dimensions: 270*155*315mm; Gate Moving Speed: 12m/min.
• Operating Temperature: -45ºC to +65ºC; Working System: S4-25%; Running Time: 10 min.
• Standard Configuration: Includes motor, control panel, manual override keys, remotes, and fixing hardware.
• Optional Accessories: Alarm lamp, mounting plate, wireless keypad, wireless wall button, etc.
• Certificates: CE and CCC certified for quality and safety compliance.

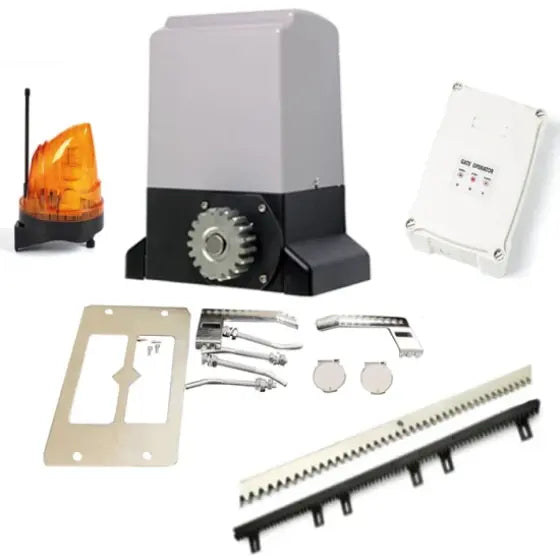

KIT INCLUDES :

1.Power Supply - 220V +10%/50H

2.Motor - 24VDC

3.Flashlight - 1 pc

4.Photocell - 1 pair

5.Remotes - 2 nos

6.Nylon Gear Rack - 4 MTR

LEAD TIME FOR DELIVERY : 20 DAYS
