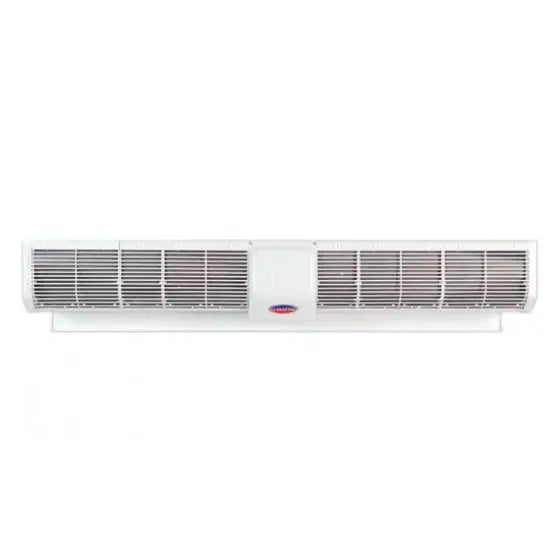

OLEFINI Air Curtain KEH-18 , 2 meter- Made in Greece

OLEFINI Air Curtain

1. Versatile Application:
   • Ideal for various commercial spaces including small shops, bars, cafeterias, small hotels, banks, schools, and supermarkets.
2. Optimal Coverage:
   • Capable of covering openings up to 2.00m long.

3. Technical Details OLEFINI Air Curtain :

   • Dimensions:
     • Max Door Height: 2.3m
     • Max Door Width: 2.00m
   • Outlet Velocity:
     • Adjustable velocities of 9/8/7 m/sec for customized air flow.
   • Air Volume:
     • High air volume at 2303/2047/1791 m3/h for efficient performance.
   • Motor Power:
     • Motor power of 240W for reliable and energy-efficient operation.
   • Capacitor:
     • Equipped with a 4µF capacitor for smooth functionality.
   • Motor Speed:
     • Variable motor speeds at 1310/1200/1000 rpm for flexibility.
   • Power Supply:
     • Operates on a standard 400V, 3N, 50Hz power supply.
   • Noise Level:
     • Low noise levels at 59/55/52 dB at a 1-meter distance for a quiet environment.
   • Current Consumption:
     • Max current consumption of 18 A per phase.
   • Thermal Power:
     • Options for thermal power at 12 or 15 kW.
   • Temperature Control:
     • Adjustable temperature settings at 160°C/180°C/210°C for different speed levels.
4. Compact Design:
   • Total length of 2009mm, width of 274mm, and height of 172mm for easy installation.
5. Effective Airflow:
   • Outlet designed for optimal airflow with various width and height specifications.
6. Heavy-Duty Weight:
   • Weighs 37kg, indicating a robust and durable construction.
7. Energy-Efficient Operation:
   • Designed to operate efficiently, contributing to energy savings.
8. Easy Installation:
   • User-friendly design for straightforward installation in commercial settings.
9. Temperature Control:
   • Allows precise temperature control for different operating speeds.
