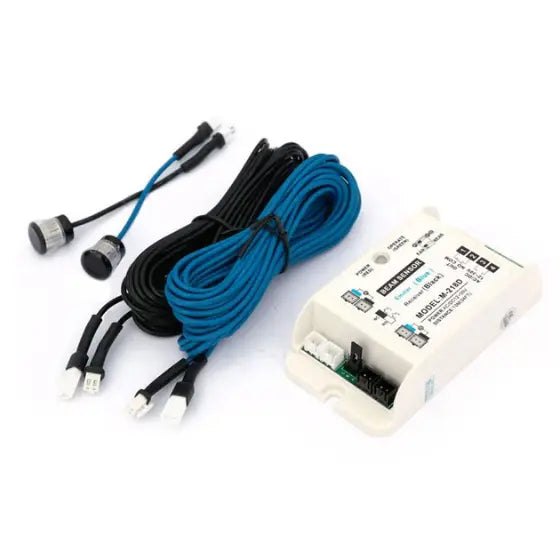

Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security
Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security
Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security
Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Availability: 2 In Stock
Product Type: Safety Sensors
Dhs. 1,200.00
Dhs. 1,399.00
Dhs. 1,200.00
Hurry up! only 2 left

UAE delivery in 1-3 days

Free on orders over AED 500 (in-stock items)

Installation available

By our SIRA-certified team, across the UAE

Manufacturer warranty

Covers manufacturing defects

Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Dhs. 1,399.00 Dhs. 1,200.00
Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security
Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Single Channel Safety Beam Sensor For Automatic Doors-Entryway Security

Dhs. 1,399.00 Dhs. 1,200.00
Description
  • Widely Used: Suitable for automatic doors as a safety presence auxiliary function, providing accurate and reliable detection.
  • Safety Signal: Detects people or objects to signal automatic door opening, enhancing safety by preventing potential hazards.
  • Easy Installation: Comes with a safety light eye mounting bracket (CNB-218G) for secure installation on door frames and columns.
  • Convenient Wiring: Uses color-coded plug-in sockets for simplified and precise wiring.
  • Adjustable Range: Offers options for single beam or double beam detection with flexible range adjustment.
  • Transmitting and Receiving: Consists of a pair of transmitting and receiving light eye heads and a main controller for easy installation and wiring.
  • Anti-Interference: Utilizes a high-precision calculating mode and a sun filter factor to improve system interference resistance.
  • Fault Alarm: Equipped with a short connection fault alarm function for the receiving eye head.
  • Specifications:
    • Power Input: AC/DC 12-30V (-/+10%)
    • Connect Output State: ON/CN option
    • Output Capacity: 1A 24V DC
    • Max. Optical Distance: 10 meters
    • Light Eye Size: ø15mm x 18.24(L)mm
    • Dynamic Current: 72mA (DC 12V Power)
    • Static Current: 35mA (DC 12V Power)
    • Controller Size: 105.5(L)x53.4(W)x28.5(H)mm
    • Bracket Size (CNB-218G): 28(L)x30(W)x18.5(H)mm

✅ Warranty & After-Sales Support

All products include a minimum 1-year manufacturer warranty. Professional installation and after-sales support available across Dubai & UAE by our SIRA-certified team.
