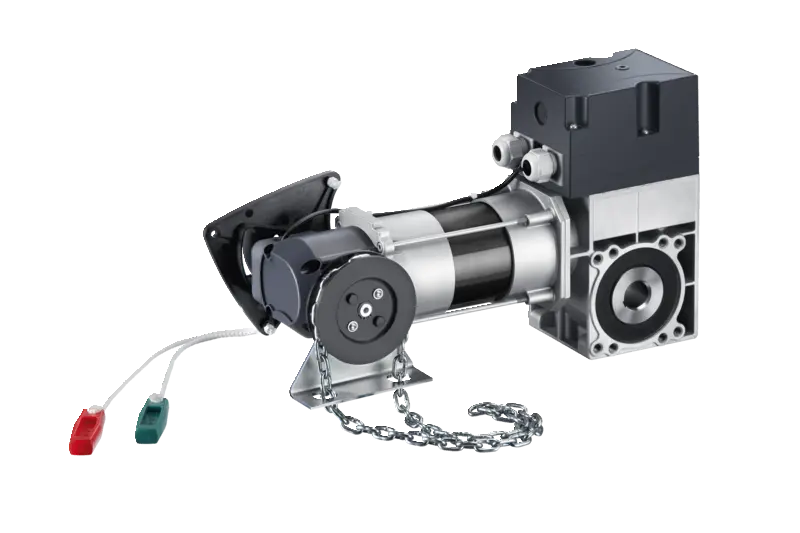

SOMMER GIGAsedo 018.140 CXET1 Industrial Sectional Door Operator Kit – 3-Phase, 140 Nm, 7 m Chain – Made in Germany

SOMMER Industrial Sectional Door Operator – Complete Kit

SOMMER GIGAsedo 018.140 CXET1 Industrial Door Operator, 3-Phase, with 7 m Chain – Made in Germany

Heavy-duty side-mounted operator for industrial and commercial sectional doors in warehouses, factories, loading bays and logistics facilities across Dubai and the UAE. Supplied as a complete ready-to-install set with control unit, radio receiver, two remotes and safety photocells.

Technical Specifications

• Output torque: 140 Nm
• Output speed: 18 rpm
• Motor output: 0.55 kW
• Power supply: 3-phase, 50 Hz
• Max. door weight: 600 kg
• Max. door size: 40 m²
• Duty cycle: ED 60% S3
• Protection class: IP54
• Operating temperature: −5 °C to 60 °C
• Noise level: < 75 dB(A)

Key Features

• Emergency hand chain (7 m, DIN 766): Open and close the door manually during a power failure. Chain sprocket rotates in 180° steps and can be fitted left or right side.
• GIGAcontrol A control unit: Programmable industrial door controller with built-in push button.
• Remote operation: AS207 receiver with two Pearl Twin 2-channel transmitters.
• Safety: Photocell pair stops and reverses the door if an obstruction is detected.
• Long service life: Low-vibration, low-noise motor with lifetime lubrication.
• Torque support included: 253 × 40 × 3 mm bracket with mounting keys for 25.4 mm and 31.75 mm shafts.

System Includes

1. Sectional door side motor GIGAsedo 018.140 CXET – 1 no.
   • 783V024 GIGAcontrol A R3 with built-in push button – 1 no.
   • 20896V000 power cord cable 1.3 m – 1 no.
   • 20967V001 connecting cable 10-wire, 7 m – 1 no.
2. Receiver AS207 – 1 no.
3. Pearl Twin transmitter 2-channel (S10019-00001) – 2 nos.
4. Safety photocell 7029V000 – 1 pair

Supply only. Professional installation available across Dubai, Sharjah and the UAE — contact us for a site visit and installed price.
