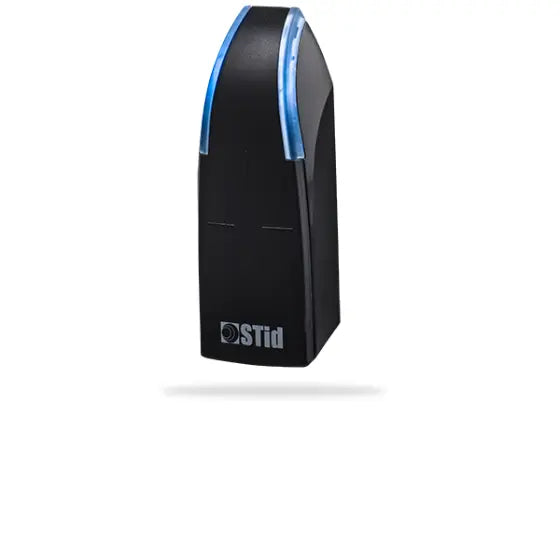

STID Reader ARC1S/BT - Bluetooth RFID/NFC Reader for Seamless Connectivity

• Versatile Multi-Technology Reader:

  • Seamlessly integrates various technologies for enhanced access control.

• Optimized Design for Small Spaces:

  • Specifically designed for installation in compact spaces, perfect for door frames or narrow flush box mounting.

• Flexible Installation:

  • Optimized dimensions and design ensure perfect integration in any environment, including on metal surfaces, without the need for spacers.

• Installation Flexibility:

  • Circular oblongs and a cable with a removable connector output provide great installation flexibility.

• Plan Lecteur Architect ARC One:

  • CE, FCC, UL certified with logos (grey 250px).

• Frequency:

  • Operates at 13.56 MHz + Bluetooth® (Low Energy).

• Standards:

  • Complies with ISO14443 types A & B, ISO18092.

• Certifications:

  • CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 for both Indoor & Outdoor use.

• Chip Technology:

  • Equipped with the STid Mobile ID® (virtual card) and supports MIFARE® DESFire® EV2.

• Functions:

  • Pre-configured for secure read-only operations.

• Interfaces:

  • Supports Wiegand 32 or 37 bits for versatile compatibility.

• Reading Distances:

  • RFID: 0 - 6 cm; Bluetooth®: 0 - 20 m, providing exceptional flexibility in diverse scenarios.

• Power Supply:

  • Operates on 9 - 15 VDC with a consumption of 150 mA/12 VDC maximum.

• Material:

  • Crafted from durable ABS-PC UL-V0 material in a sleek black finish.

• Compact Dimensions:

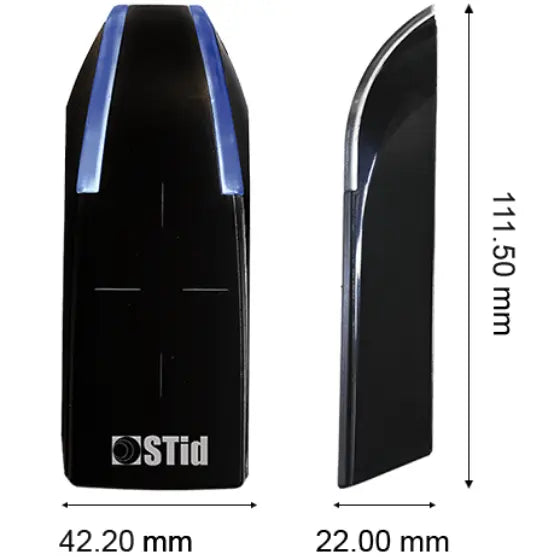

  • Dimensions (h x w x d): 110 x 42 x 22 mm / 4.33’’ x 1.65’’ x 0.86’’, ensuring a compact and unobtrusive profile.

• Wide Operating Temperatures:

  • Operates in temperatures ranging from -30°C to +70°C, suitable for various climates.

• Robust Protection:

  • Features an IK10 reinforced vandal-proof structure for added security.

• Weather and Dust Resistance:

  • Holds an IP65 level certification, making it weather, water, and dust-resistant according to CEI NF EN 61086 standards.

• Humidity Tolerance:

  • Operates reliably in humidity conditions ranging from 0% to 95%.

CUSTOMER NOTE :

DELIVERY LEAD TIME :  30 DAYS FROM THE ORDER DATE
