Teddington E-Series Air Curtain - Commercial & Retail Entrances | Made in Germany

Teddington E-Series Air Curtain - German-Engineered Retail & Commercial Protection

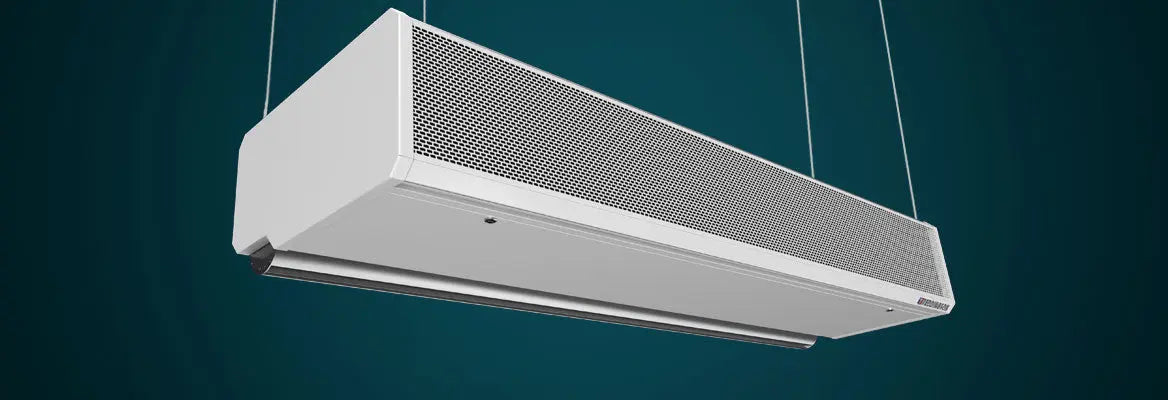

The Teddington E-Series is a powerful commercial air curtain built for frequently opened entrances - supermarkets, shopping centres, furniture stores, car dealerships and office buildings. It creates a strong, even air stream that separates indoor and outdoor air without restricting customer or staff access, reducing heating and cooling losses at the door.

The patented CONVERGO® pressure chamber nozzle system delivers a discharge range of up to 4.4m with minimal energy use, keeping out draughts, dust and insects. Every unit is custom-made to the exact door width and installation height, in a choice of 11 housing configurations (horizontal, vertical, ceiling-flush, semi-recessed and fully recessed).

Key features:

• CONVERGO® pressure chamber nozzle system (patented, Venturi-based)
• Installation heights up to 4.40m, door widths up to 7m (vertical config, both sides)
• Heating options: ambient, LTHW (hot water), electric, VRF (R410a/R32), hybrid
• AC or EC fans; nominal flow rate 2,100-14,500 m³/h
• Optional sound insulation and custom RAL colours
• Made in Germany

Sourced through Teddington Luftschleieranlagen, Germany. Custom quotation only - unit length, housing type and heating option are specified per project. Contact us for custom pricing.
