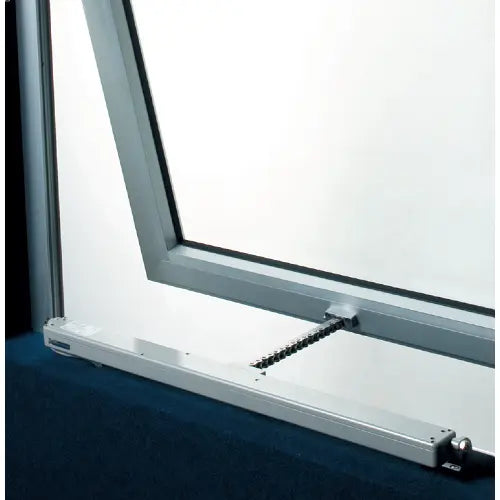

UCS Quasar DC Synchro Draw Bridge - Specialised 90° Smoke Ventilation Actuator

A specialised Synchro Quasar variant for bottom-hinged windows opening outwards 90°, purpose-built for smoke ventilation applications ("draw bridge" opening geometry). Equipped with integrated speed synchronization for multi-actuator installation on the same vent, engineered specifically for large-format smoke exhaust openings on institutional and commercial buildings.

Key features:

• 90° draw-bridge opening geometry for bottom-hinged smoke vents
• Multi-actuator synchronization, integrated control board
• 24Vdc, EN 12101-2 compliant for SHEV applications
• Double stainless-steel link chain, electronic overload cut-off
• Made in Italy

Merac Dubai works directly with UCS Ultraflex Control Systems, Italy, on UAE project enquiries. Custom quotation only - actuator count, vent geometry and mounting brackets specified per project. Contact us for custom pricing.
