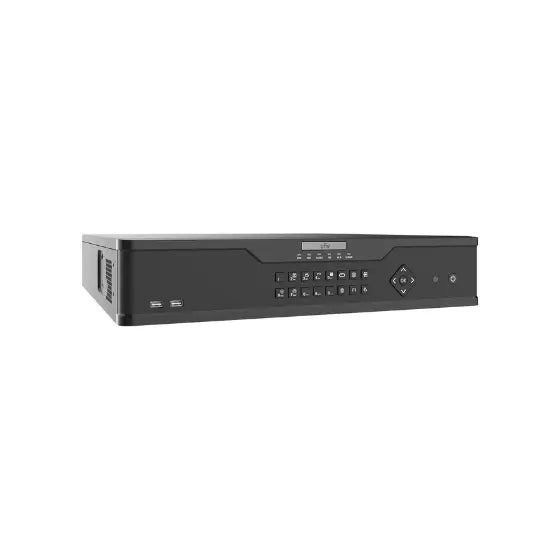

UNV Sira Certified 16 CH NVR- High-Performance Network Video Recorder

Product Description:

Video/Audio Input:

• Options for 16-ch IP video inputs.
• 1-ch two-way audio input via RCA.

Network:

• Incoming and outgoing bandwidth of 384Mbps.
• Support for remote users (up to 128).
• Compatible with various protocols, including TCP/IP, P2P, UPnP, and more.
• Browser support: IE for Windows, Firefox, Chrome, and Edge.

Video/Audio Output:

• HDMI/VGA output options for flexible display configurations.
• HDMI1/HDMI2 supports up to 4K resolution (3840x2160).
• Multiple recording resolutions (12MP to CIF) for versatile usage.
• 1-ch RCA audio output with G.711A and G.711U audio compression.
• Synchronous playback for up to 16-ch.

Live View and Playback:

• Choose from various display options.
• Corridor mode screen configurations for customized viewing.
• Snapshot support (up to 4K resolution) for capturing critical moments.

Decoding:

• Support for Ultra 265, H.265, and H.264 decoding formats.
• Capable of live view and playback at various resolutions.
• Options for different capabilities based on the number of channels.

Hard Disk:

• Equipped with 4 SATA interfaces, each supporting up to 10TB HDDs.
• Additional eSATA interface for expandable storage.
• RAID 1 and 5 support for data redundancy.

Smart VCA Detection:

• Advanced video content analysis with various detection options.
• Efficient search capabilities for specific events.
• People counting, intrusion detection, and more.

General and Alert Alarms:

• Stay informed with motion, tampering, and alarm alerts.
• Detect network conflicts, disk issues, and more.

External Interfaces:

• Multiple network, USB, and alarm interfaces for enhanced connectivity.

General:

• Broad voltage power supply range (100~240 VAC).
• Low power consumption (≤ 25W without HDD).
• Suitable for various working environments (-10°C to +55°C).
• Certification for quality assurance (CE, FCC, UL, RoHS, WEEE).
