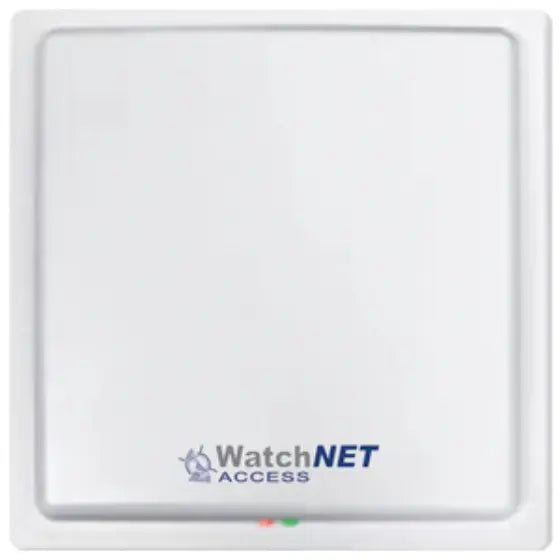

WATCH NET UHF reader Long Range Reader (1~12 meter)

WATCH NET UHF reader

WATCH NET UHF reader Long Range Reader (1~12 meter)

Key Features:

• High Performance UHF RFID Reader:
  • The WAR-UHF-LR RFID is a high-performance UHF RFID integrated reader designed with fully self-intellectual property.
• Efficient DSP Algorithm:
  • Utilizes a proprietary efficient DSP algorithm, supporting fast tag read/write operations with a high identification rate.
• Wide Application Range:
  • Widely applicable in RFID systems such as logistics, access control, anti-counterfeit, and industrial production process control.
• Frequency Band Customization:
  • Operates in the 860-868MHz/902-928MHz frequency band with optional frequency customization for versatile applications.
• FHSS or Fix Frequency Transmission:
  • Supports FHSS or fix frequency transmission based on the specific needs of the RFID application.
• Adjustable RF Output Power:
  • RF output power is adjustable up to 30dbm, providing flexibility for different RFID scenarios.
• Multiple Work Modes:
  • Supports auto-running, interactive, and trigger-activating work modes, adapting to various RFID application requirements.
• Low Power Dissipation:
  • Low power dissipation with a single +9V DC power supply, ensuring energy efficiency.
• Versatile Communication Interfaces:
  • Supports RS232, RS485, Wiegand interface, and more, providing flexibility in integration with different systems.
• Antenna Options:
  • 12dBi antenna option available, offering an effective reading distance of over 12m.

Technical Specifications:

• Protocol Support:
  • ISO18000-6B, ISO18000-6C (EPC G1G2) protocol tag support.
• Tag Support:
  • Compatible with WAR-UHF-TAG & WAR-UHF-ISO tags.
• Compact Design:
  • Size: 445mm x 445mm x 55mm / 17.52" x 17.52" x 2.16", with a net weight of 2600g.
• Communication Interface Options:
  • RS232, RS485, WG26/34, TCP/IP, POE, WIFI, depending on individual situations or client requirements.
• Power Supply:
  • 9V power supply with a power dissipation of 3.5W.
