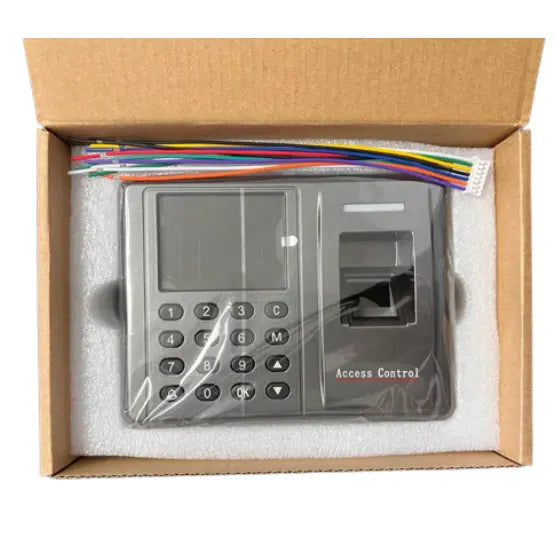

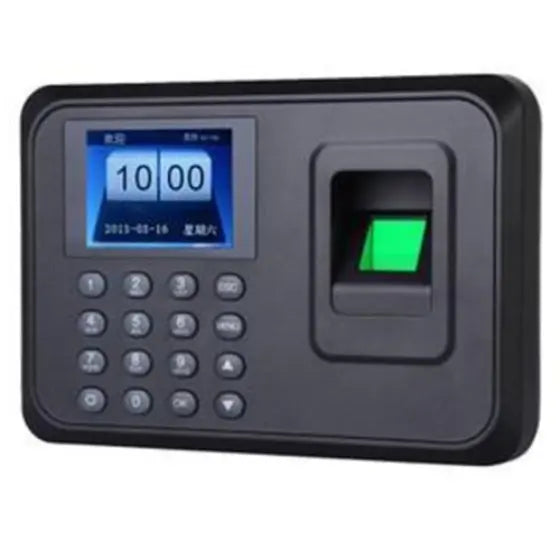

Wired Fingerprint, Card, and Numeric Attendance System - Secure and Efficient Employee Time Tracking

Versatile Access Control System:

• Ideal for network access control and time attendance.

User Capacity:

• Supports up to 3000 users.

Multi-Mode Authentication:

• Supports Fingerprint, Card, PIN, Fingerprint & Card, and Fingerprint & PIN modes.

Event Storage:

• Large event buffer with 100,000 event storage capacity.

Wiegand Compatibility:

• Wiegand 26 bits output and input for seamless integration.

Connectivity Options:

• Connects to PC via TCP/IP or USB.

User-Friendly Operation:

• Supports various access modes, including Fingerprint, Card, and PIN.

Fingerprint Reader Details:

• Optical Fingerprint Module with 500DPI resolution.
• Identification time of less than 1 second.
• FAR (False Acceptance Rate) less than 0.0001%.
• FRR (False Rejection Rate) less than 0.01%.

Proximity Card Reader:

• Radio Technology: Industry Standard 26 bits.
• Reads 125KHz Industry Proximity EM Cards.
• Read range of 2~7 cm.

PIN Reader:

• Accepts 1~8 digits PIN.

Wiring Connections:

• Relay Output, Exit Button, DOTL, Alarm, Wiegand output, Door Bell.

Communication Options:

• USB and TCP/IP for flexible connectivity.
• USB for downloading/uploading data.

Relay Details:

• Adjustable Relay Output Time (1-99 seconds with 5 seconds default).
• Lock Output Load: 2 Amp Maximum.
• Alarm Output Load: 5 Amp Maximum.

Wiegand Interface:

• Wiegand 26 bits Output.

Environmental Conditions:

• Operating Temperature: Indoor, -20°C to +50°C.
• Operating Humidity: 20%RH-90%RH.

Physical Details:

• ABS Enclosure for durability.
• Compact dimensions: 14L x 10.5W x 3.5H (cm).
• Lightweight: 300g (Unit Weight), 500g (Shipping Weight).
