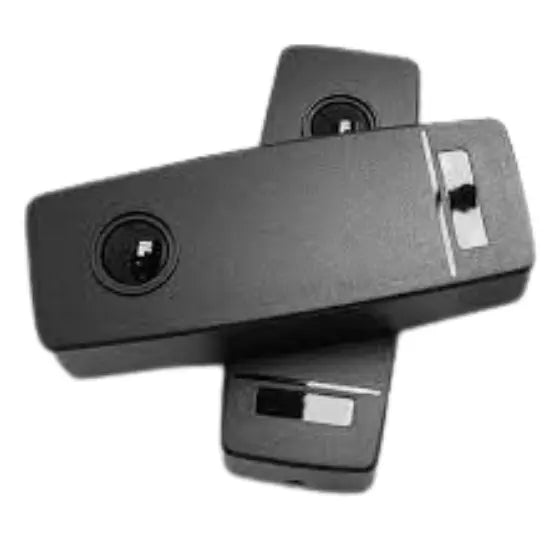

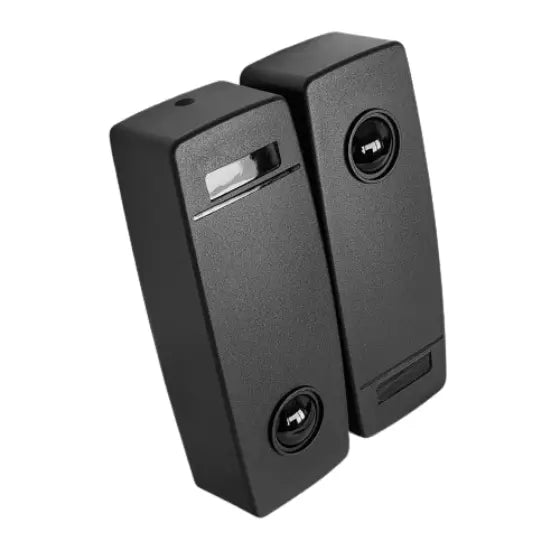

Wireless Infrared Safety Photocell for Barrier Security

Enhance Your Security with a Wireless Photocell

• Functionality: Incorporates Mixing, Infrared Range, Communication, Search, and Tracking Systems.

• Detection Type: Infrared Beam Sensor for accurate detection.

• Material and IP Rating: Constructed with ABS material, boasting an IP65 rating for durability and protection against elements.

• Power Supply: Transmitter powered by 2 x AA Alkaline Batteries (supplied); Receiver compatible with 12-24V AC or 12-30V DC.

• Power Consumption: Receiver consumes 30mA at 12V DC.

• Battery Life: Transmitter battery life extends a minimum of 2 years with audible low battery indication.

• Operating Distance: Specified operating distance of 30 meters.

• Output Contacts: Fail-safe, N/C and N/O, potential-free contact with a rating of 3A @ 30V DC non-inductive.

• Operating Conditions: Operates in temperatures ranging from -20°C to +60°C and 0-90% non-condensing humidity.

• Degree of Protection: IP65 protection with rubber housing material made of PC(UV) for longevity.

• Size: Compact size measuring 51(L) * 135(W) * 32(H)mm.

• Alignment: Automatic alignment within 1m² area.

• Application: Ideal for use in Barrier Gates and similar applications.

What is a Wireless Photocell?

A wireless photocell is an innovative device designed to enhance security systems, particularly for barriers. It employs advanced infrared technology which detects movement and signals when objects enter its range. Because it is wireless, installation is easier and costs are reduced, making it ideal for both residential and commercial applications. This technology helps in preventing unauthorized access and improving overall safety.

Why Choose Wireless Technology?

Choosing a wireless photocell offers numerous advantages over traditional wired systems. For one, it eliminates the need for complicated wiring, simplifying the setup process. Additionally, wireless technology means you can place the device in hard-to-reach areas without the concern of connecting cables. This versatility is essential for expanding security coverage and adapting to various environments.

Applications in Barrier Security

Wireless photocells are perfect for barrier security applications, whether for gates, fences, or industrial barriers. They can effectively alert you to any movement, providing peace of mind. This is particularly important in areas prone to intrusions or safety hazards. Therefore, using a wireless photocell can significantly reduce potential risks and enhance your security protocols.
