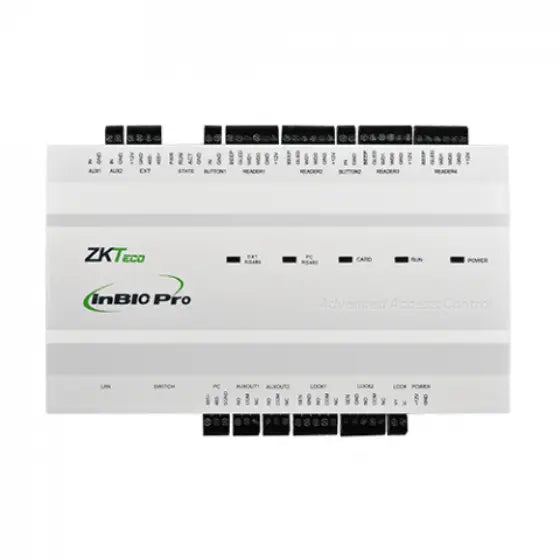

ZKTeco InBio Pro 460 Advanced 4-Door Controller for IP-based Biometric Access Control System

High-End Access Control: The InBio Pro 460 is a top-tier access controller designed for secure and efficient biometric identification, enhancing user security and data protection.

IP-Based Control: This door access control panel offers real-time communication and manages up to 4 doors, ensuring efficient access management.

Encrypted Communication: Featuring an encrypted communication protocol (OSDP v2.1.7), it provides an additional layer of security (updated Nov. 2022).

Embedded Fingerprint Matching: The controller includes embedded fingerprint verification for advanced access control.

Web-Based Management: Ideal for project-oriented applications, it can be managed via TCP/IP communication through LAN or WAN networks and pairs seamlessly with ZKBioSecurity web-based software.

Multi-Mode Verification: The InBio Pro Series supports multiple verification modes, including fingerprint, card, and password, enhancing security.

Internal Biometric Matching: The system matches fingerprints internally, providing fast and accurate results via RS485 communication.

Large Capacity: With support for up to 20,000 fingerprint templates, 60,000 badge users, and storage for 100,000 events, it ensures reliable data storage.

Cost-Effective: This controller offers a low total cost of ownership, allowing firmware upgrades without advanced tools and expanding the value of your investment.

Advanced Features: It goes beyond door control, offering auxiliary relay functions for lights, alarms, and intrusion detection.

Versatile Options: Available in 1-door, 2-door, and 4-door models, it's adaptable to various project requirements, reducing unnecessary costs.

Built-In Access Control: Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and input/output linkages are built into the controller's firmware.

Specifications: Supports 4 doors, 12 readers (8 RS-485 and 4 26-bit Wiegand readers), and features 12 inputs and 8 outputs.

• Card and Fingerprint Capacity: It can store up to 60,000 cardholders and 20,000 fingerprints.

• Logging: Capacity for 100,000 event logs ensures a comprehensive record of access and events.

• Communication: Utilizes TCP/IP for efficient data transfer.

• Hardware: Equipped with a 32-bit 1.2GHz CPU, 128MB RAM, and 256MB flash memory.

• Power and Environment: Operates at 9.6V-14.4V DC, suitable for an operating temperature range of 0-45°C with humidity levels from 20% to 80%.
