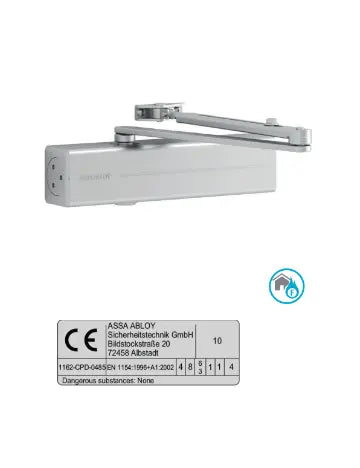

Assa Abloy Door Closer DC300 Surface Mounted Door Closer - EN3-6, Fire Rated

Assa Abloy Door Closer: Premium DC300 for All Your Needs

Assa Abloy Door Closer Premium DC300 Surface Mounted Door Closer - EN3-6, Fire Rated

Enhance the control, safety, and longevity of your doors with the DC300 Surface Mounted Door Closer. Engineered with Rack and Pinion technology, this versatile door closer is designed for a broad range of applications, including single action doors up to 1400mm wide. It provides reliable performance and peace of mind, making it an excellent choice for both commercial and residential settings.

Key Features & Benefits:

• Advanced Adjustable Control:
  • Closing speed, latching speed, and back-check are all precisely adjustable via easy-to-access front-facing regulating valves.
  • Closing speed is variable between 180° and 15°.
  • Latching speed is variable between 15° and 0°.
  • Back-check is variable above 75°.
  • Features thermodynamic valves for consistent performance across varying temperatures.
• Adjustable Closing Force: Offers an adjustable closing force, size EN3-6, suitable for doors up to 1400mm wide.
• Versatile Application: Can be used for both left and right-handed doors and allows an opening angle of up to 180°. The link arm (L190) is height-adjustable up to 14mm for ease of fitting.
• Fire and Smoke Door Compatible: Suitable for fire and smoke protection doors. It is in compliance with EN1154 and is CE approved for building products.

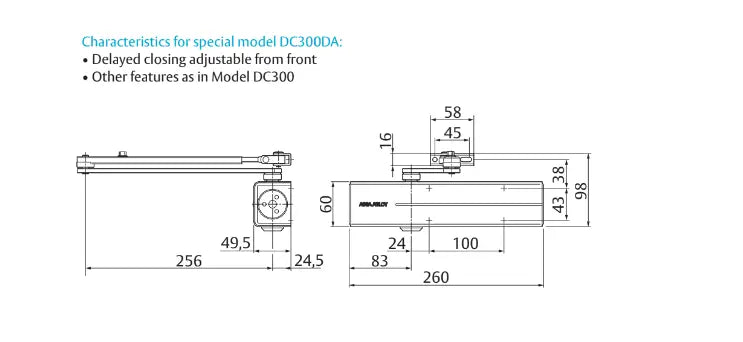

• Robust Construction: With a weight of 1.9 kg and dimensions of 260mm (Length) x 60mm (Height) x 49.5mm (Depth), this door closer is built for durability and long-term use.

Special Model Available: DC300DA

• The DC300DA model offers an additional feature: delayed closing, adjustable from the front. All other characteristics are consistent with the standard DC300 model.

Available Finishes:

The DC300 is available in a selection of standard colors to seamlessly match your door and frame:

• Silver EV1
• White, similar to RAL9016
• Brown, similar to RAL8014
• Black, similar to RAL9005
• Customized finishes are available upon request.
• A Stainless steel full cover (A173) is also an available accessory.

Enhance Your Installation with Compatible Accessories:

A range of accessories is available to ensure perfect installation and expanded functionality:

• Link arm L190: The standard link arm.
• Hold-open link arm L191: Allows for an adjustable hold-open range between 75°-150°, and the hold-open mode can be enabled and disabled. Important Note: The hold-open link arm L191 cannot be used with fire and smoke protection doors.
• Mounting plate A120: For universal use and mounting with drilling template according to EN1154 Supplement 1, suitable for fire and smoke protection doors.
• Angle bracket A123: For frame mounting in case of a deep jamb, which reduces headroom by 70mm. Suitability for fire and smoke protection doors should be checked.
• Parallel arm bracket A154: For parallel arm installation. Suitability for fire and smoke protection doors should be checked.
• Glass door shoe A165.
• Mounting plate A168: Specifically for the link arm.

Choose the DC300 Surface Mounted Door Closer for a reliable, adaptable, and high-performance solution that meets stringent quality and safety standards.

High-Quality Engineering

The Assa Abloy Door Closer combines robust design with advanced technology. As an EN3-6 certified model, it meets strict European guidelines for performance and safety. This premium door closer consistently ensures the door's operation is smooth and reliable. Whether it's a commercial building or a residential space, you can trust its durability and functionality because it is crafted from high-quality materials that withstand wear and tear.

Fire Rating and Safety Features

One of the standout features of the Assa Abloy Door Closer is its fire rating. It is designed to enhance safety by closing doors securely during a fire, limiting the spread of smoke and flames. This is crucial for any building's safety plan, as proper functioning door closers can save lives and property. Therefore, investing in a fire-rated model like the DC300 not only ensures compliance but also provides peace of mind.

Easy Installation and Versatility

The Assa Abloy Premium DC300 is not only efficient but also easy to install. It is made to be compatible with various door types and sizes, making it a versatile choice for any project. Given its surface-mounted design, installation does not require extensive modification to your doors. Therefore, anyone can set it up quickly and easily, allowing for immediate use without extensive downtime.
