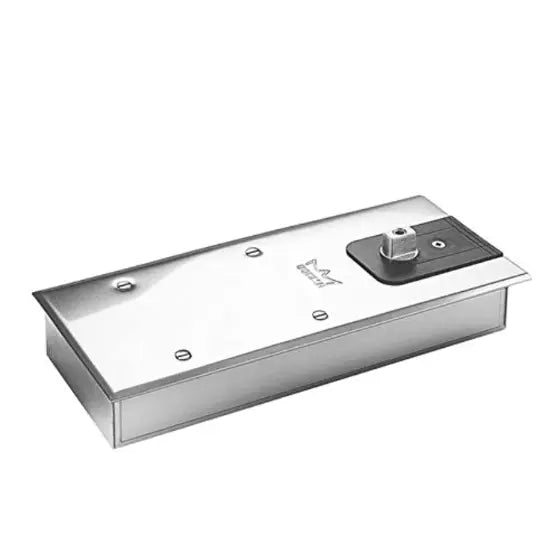

bts 65 dorma floor spring Hold-Open with SS cover and standard spindle

Exploring the Features of the BTS 65 Dorma Floor Spring

Product Details:

• Product Name: BTS 65 Floor Spring Clamp Fixing System
• Manufacturer: dormakaba
• Includes:
  • Practical clamp fixing system for secure fit in cement box
  • Floor spring accessories: dormakaba 2300 Sealing Compound
  • Spindle inserts for adjustable floor clearance
  • Universal cover plate available in stainless steel or satin brass

Features:

• Clamp Fixing System:
  • Ensures secure and high-precision fit in the cement box
• Sealing Compound:
  • Prevents moisture penetration, mandatory for wet rooms as per VOB regulations
• Spindle Inserts:
  • Adjustable floor clearance; interchangeable spindles available for various conditions
  • Special designs available on request (e.g., wide flats with 3° offset, square inserts)
• Universal Cover Plate:
  • Available in stainless steel or satin brass finishes
• Benefits for the Trade:
  • Outstanding value for money
  • Wide range of accessories for different installation situations
• Benefits for the Installer:
  • Easy installation due to shallow design
  • Dual valve control for adapting to individual requirements (130° to 0° and 130° to 20°)
  • Interchangeable spindle inserts for site-specific conditions
• Benefits for the Architect/Specifier:
  • Minimum floor recess dimension
  • Rugged construction for door weights up to 100 kg
  • dormakaba quality assurance
• Benefits for the User:
  • Smooth closing operation, virtually temperature-immune
  • Low effort requirement ensures easy door operation
  • Optional integrated single-point hold-open feature at 90°

Superior Durability and Design

The bts 65 dorma floor spring

stands out due to its impressive durability and elegant design. Made from high-quality materials, it can withstand heavy foot traffic while maintaining its functionality. Its stainless steel cover not only adds a touch of sophistication but also protects the internal components from damage. This combination of strength and aesthetics makes it an excellent choice for both residential and commercial applications.

Convenient Hold-Open Mechanism

One of the key features of the BTS 65 is its hold-open mechanism. This allows doors to remain open at a fixed angle, providing convenience in busy settings. However, the hold-open can also be released easily, allowing the door to close when needed. This flexibility is especially beneficial in environments such as shopping malls and offices where foot traffic is high, making directional flow easier and safer for everyone.

Easy Installation and Adjustment

The installation process for the bts 65 dorma floor spring

is straightforward, providing installers with significant ease. It includes a standard spindle, making it compatible with various door sizes and styles. Additionally, it comes with adjustable features, allowing fine-tuning after installation. Because of this adaptability, it suits multiple applications and guarantees optimal performance in all settings.
