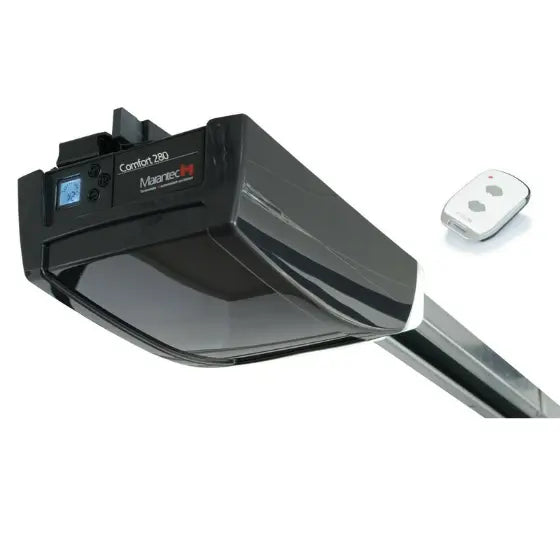

Marantec Comfort 280 Garage Door Operator - Made in Germany

Description:

• Suitable for large, heavy gates with a weight of up to 200 kg and a width of up to 6.0 meters.

What's Included in the Box:

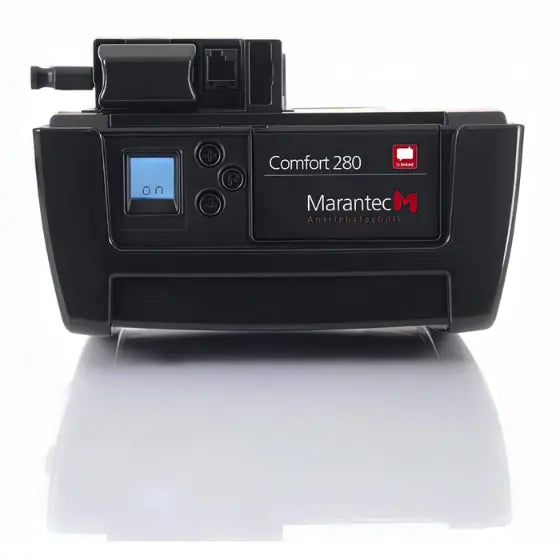

• Marantec Comfort 280 Operator Unit
• SZ-13 Rail S2
• Special 633 Limit Switch (cable-free)
• M-Command 107 Hand Transmitter

Technical Data:

• Tensile and Compressive Force (max.):1000N
• Cycles: Max. 6 cycles per hour, 48 cycles per day
• Operating Voltage: 230V/1~
• Illuminant: 8-LED Module

Scope of Operation:

• Width of Overhead Doors (max.): 6 meters
• Width of Tipping and Canopy Gates (max.): 6 meters
• Height of Tilt and Canopy Gates (max.): 2.25 meters
• Width of Single-Wall Sectional Doors (max.): 6 meters
• Width of Double-Walled Sectional Doors (max.): 6 meters
• Gate Weight (max.): 200 kg
