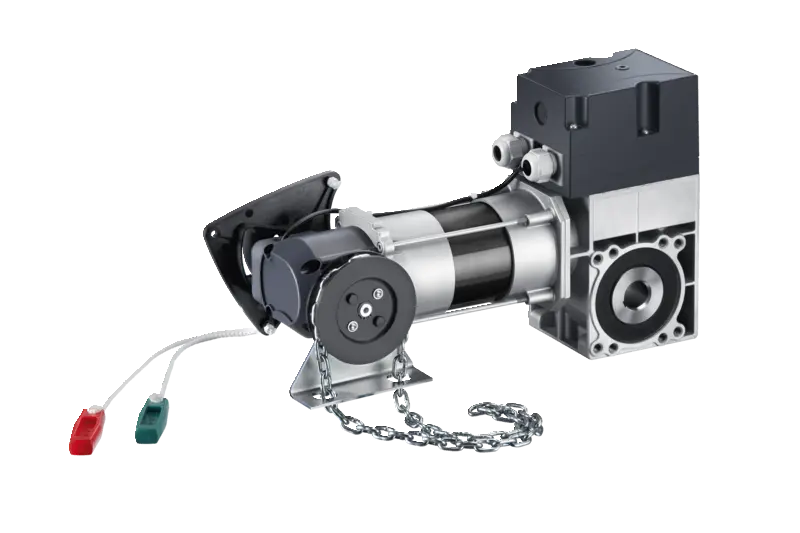

SOMMER GIGAsedo 018.140 CXET1 Industrial Door Operator - 3-Phase, 7m Chain, Made in Germany

SOMMER Industrial Door Operator

SOMMER GIGAsedo 018.140 CXET1 Industrial Door Operator - 3-Phase, 7m Chain, Made in Germany

The GIGAsedo 018.140 CXET1 is a heavy-duty 3-phase sectional door operator built for high-cycle industrial and commercial use, with an emergency hand chain for manual operation during a power failure.

• Output Torque: 140 Nm
• Motor Output: 0.55 kW
• Electrical Supply: 3~230V delta connection, 50 Hz
• Max Door Weight: 600 kg
• Max Door Area: 40 m²
• Output Speed: 18 rpm
• Emergency Hand Chain: 7m, DIN 766 hoist chain, 180° unit rotation for flexible chain positioning
• Protection Class: IP54
• Duty Cycle: ED 60% S3
• Operating Temperature: -5°C to 60°C

SYSTEM INCLUDES:

1. Sectional Door Side Motor GIGAsedo 018.140 CXETO, S10805-00001 - 1 NOS

    - 783V024 GIGAcontrol A R3 with built-in push button - 1 NOS

    - 20896V000 Power Cord Cable 1.3m - 1 NOS

    - 20967V001 Connecting Cable 10-wired, 7m - 1 NOS

2. Receiver AS207 - 1 NOS

3. Pearl Twin Transmitter 2CH, S10019-00001 - 2 NOS

4. Safety Photocell 7029V000 - 1 Pair
